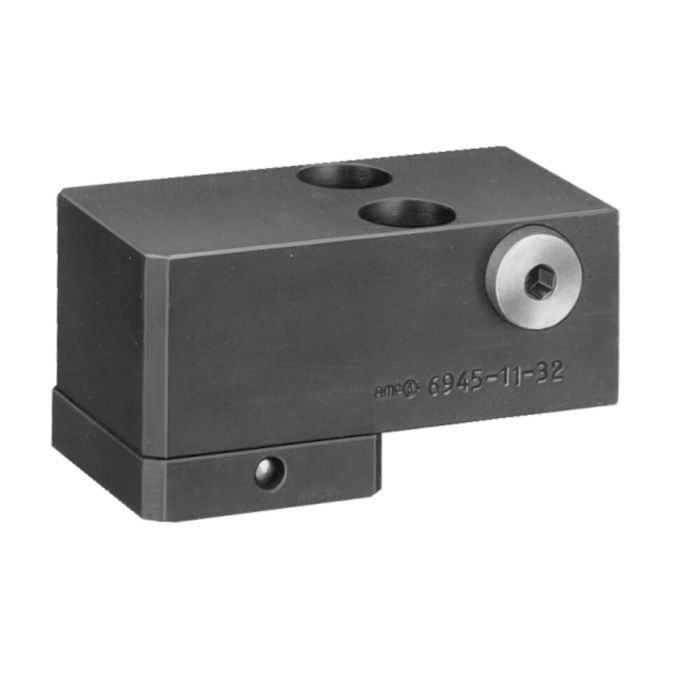

Clamping Head

Max. operating pressure 400 bar, clamping force 32 kN, stroke 8 mm, single acting

Order no.

61234

Order no.	Article no.	Clamping force at 400 bar [kN]	Stroke H [mm]	Vol. [cm³]	Screw (2 pieces)	Md max. [Nm]	Spring force min. [N]	Weight [g]
60327	6945-11-63	63	10	16,0	M16x50- 8.8	200	580	2700
61218	6945-11-20	20	6	2,9	M10x35-10.9	65	120	790
61234	6945-11-32	32	8	6,4	M12x45-10.9	120	260	1625
63990	6945-11-94	94	12	28,5	M20x70-12.9	670	920	5600

Order no.	dia. B	C	dia. D	E	F	G	k	L	m	N	P
60327	38	60	45	41	38	15	63,0	120	60	34	48
61218	22	40	25	27	26	10	41,0	80	40	24	30
61234	26	50	32	34	32	13	53,0	100	50	28	41
63990	47	70	55	50	55	15	79,5	150	80	46	62

Design:
Cylinder body made of tempering steel, blued. Piston case-hardened and ground. Built-in return spring.

Application:
The upper part of the clamping head can be screwed on direct on clamping devices.

On request:
Special sizes available on request.
