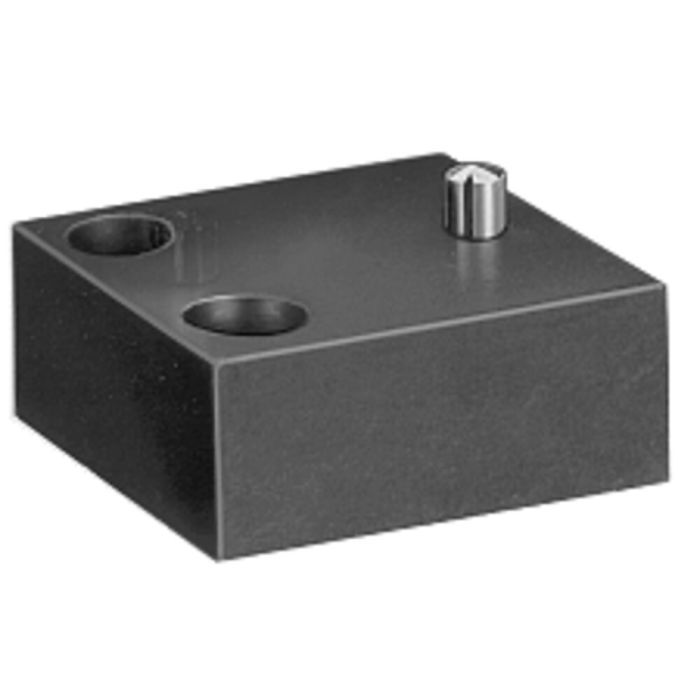

Adaptor Plate
Suitable for clamping head no. 6945-11-32, height 20 mm
| Order no. | Article no. | Screw (2 pieces) | F | Øg | k | m | N | U | Weight
[g] | Availability | Your Price |
| 61259 | 6945-11-20-08-10 | M10x45 | 26 | 11 | 10 | 40 | 24 | 32,7 | 190 | | |
| 61267 | 6945-11-20-08-20 | M10x50 | 26 | 11 | 20 | 40 | 24 | 32,7 | 300 | | |
| 61275 | 6945-11-32-08-10 | M12x50 | 32 | 13 | 10 | 50 | 28 | 40,4 | 290 | | |
| 61283 | 6945-11-32-08-20 | M12x60 | 32 | 13 | 20 | 50 | 28 | 40,4 | 485 | | |
| 61291 | 6945-11-63-08-10 | M16x60 | 38 | 17 | 10 | 60 | 34 | 48,3 | 500 | | |
| 61309 | 6945-11-63-08-20 | M16x70 | 38 | 17 | 20 | 60 | 34 | 48,3 | 770 | | |
| 63503 | 6945-11-94-08-20 | M20x85 | 55 | 21 | 20 | 80 | 46 | 69,0 | 1500 | | |
| | | | | | | | | | | |
Design:
Tempering steel, blued, with locating pin and two mounting bolts ISO 4762.
Application:
The adapter plate is fitted between of the clamping head and it's base in order to obtain a different clamping height.
On request:
Special sizes available on request.
More Information | Order no. | 61283 |
|---|
| Product type | Clamping elements |
|---|
| Max. clamping force [kN] | 32 |
|---|
