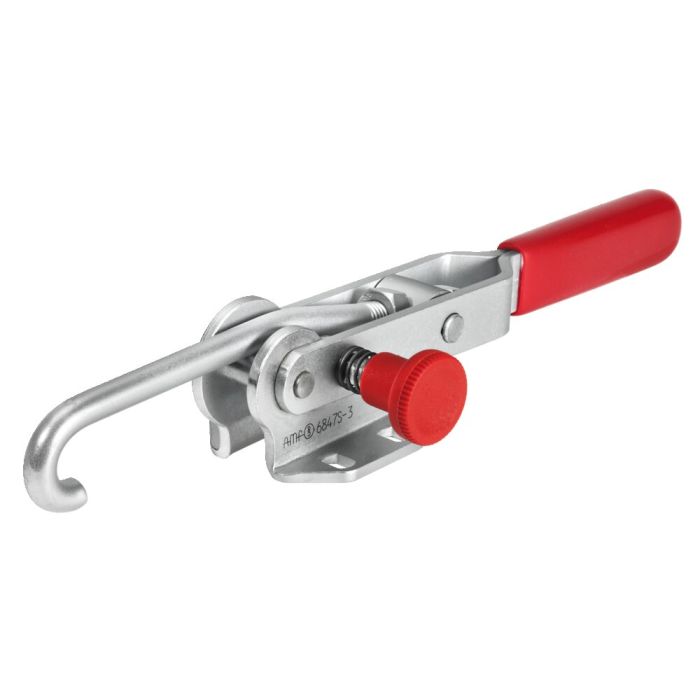

Hook type toggle clamp with safety latch
Lock when closed, size 3, max. clamping force 3 kN
Order no.
93666
Note:
The engagement height of 23 mm must be observed to ensure secure latching.
On request:
A "stainless steel" version is available.
| Order no. | 93666 |
|---|---|
| Product type | Hook type toggle clamp |
| Max. clamping force [kN] | 3 |
| Größe Schnellspanner | 3 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
