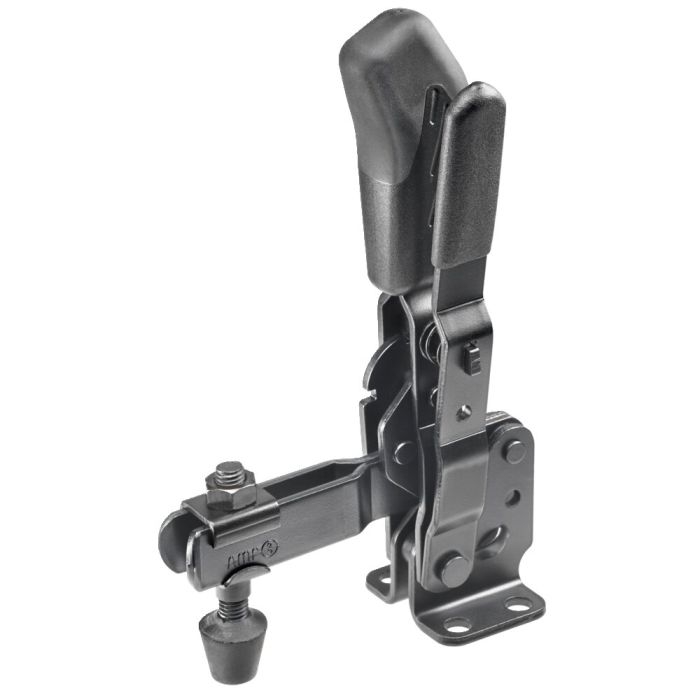

Vertical toggle clamp with safety latch, black
With open clamping arm and horizontal base, size 2, max. clamping force 1,2 kN
Order no.
91348
Note:
These clamps are suitable for photogrammetric use. The matte-black surface of the clamps prevents reflection while photographing.
For suitable clamping arm extension see no. 6896.
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 91348 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1.2 |
| Größe Schnellspanner | 2 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Black |
| Special features | Safety latch |
