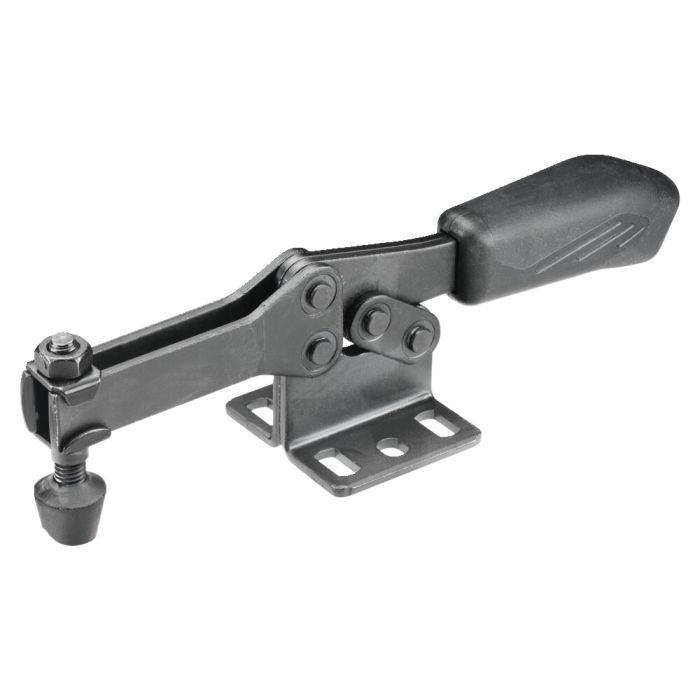

Horizontal toggle clamp, black
With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN
Order no.
90423
Note:
These clamps are suitable for photogrammetric use. The matte-black surface of the clamps prevents reflection while photographing.
For suitable clamping arm extension see no. 6896.
For suitable sensor monitor for size 3 see no. 6897S.
| Order no. | 90423 |
|---|---|
| Product type | Horizontal toggle clamp |
| Max. clamping force [kN] | 0.4 |
| Größe Schnellspanner | 0 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Black |
