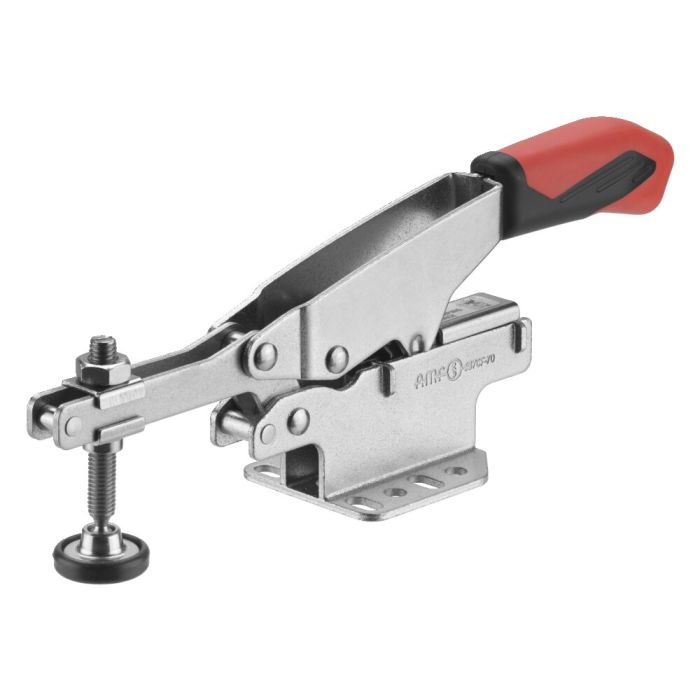

Horizontal toggle clamp with auto-adjust clamping height

With open clamping arm and horizontal base, size 70, max. clamping force 3 kN, max. height compensation 60 mm

Order no.

560897

Order no.	Size	F1 [kN]	Automatic height compensation S [mm]	Maximum height compensation [mm]	Clamping screw	Weight [g]
560895	20	2	20	35	M6 x 49	345
560896	50	3	35	40	M8 x 50	520
560897	70	3	35	60	M8 x 66	575

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Horizontal toggle clamp with red handle Nr. 93005 With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN

Wish List Compare

Your price:
Push-pull type toggle clamp with auto-adjust clamping width Nr. 560904 With horizontal base, size 15, max. clamping force 2 kN, max. stroke compensation 25 mm

Wish List Compare

Your price:

Order no.	A	b	C	C1	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	k	L	L1	m	M1	N	P	α
560895	6,1	63	26	-	5,5	5,5	22	26	27	70	121	-7	11	10	5,3	12,7	184	26 - 32	28	42,5	45	82 °
560896	8,4	104	25,4	25,4	6,5	6,5	35,2	22,2	23	72	174	-8,9	1,5	13	6,3	12,7	261	32 - 44	38	57	63,5	82 °
560897	8,5	104	25,4	25,4	6,5	6,5	35	50	41	90	174	-6,6	19,7	13	6,3	12,7	261	32 - 44	38	57	63,5	82 °
