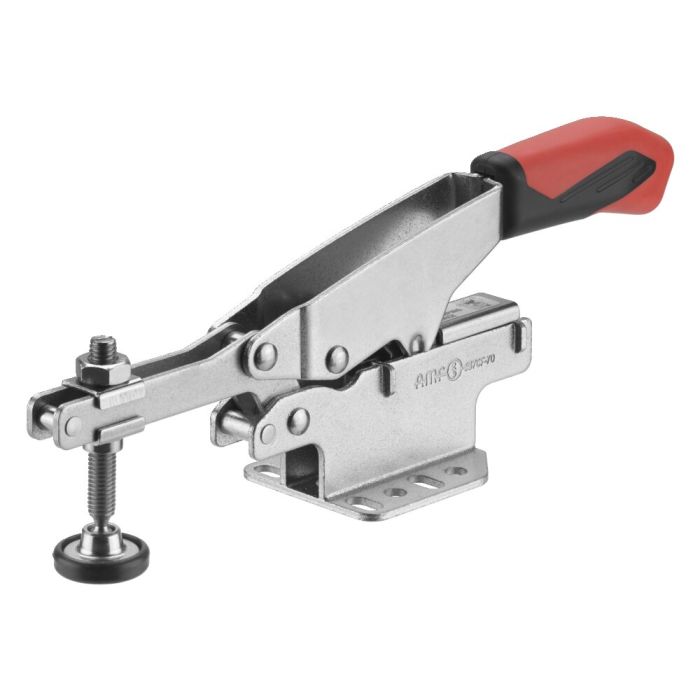

Horizontal toggle clamp with auto-adjust clamping height

With open clamping arm and horizontal base, size 20, max. clamping force 2 kN, max. height compensation 35 mm

Order no.

560895

Order no.	Size	F1 [kN]	Automatic height compensation S [mm]	Maximum height compensation [mm]	Clamping screw	Weight [g]
560895	20	2	20	35	M6 x 49	345
560896	50	3	35	40	M8 x 50	520
560897	70	3	35	60	M8 x 66	575

CAD

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom

Similar products

Horizontal toggle clamp with red handle Nr. 93005 With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN

Wish List Compare

Your price:
Push-pull type toggle clamp with auto-adjust clamping width Nr. 560904 With horizontal base, size 15, max. clamping force 2 kN, max. stroke compensation 25 mm

Wish List Compare

Your price:

Order no.	A	b	C	C1	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	k	L	L1	m	M1	N	P	α
560895	6,1	63	26	-	5,5	5,5	22	26	27	70	121	-7	11	10	5,3	12,7	184	26 - 32	28	42,5	45	82 °
560896	8,4	104	25,4	25,4	6,5	6,5	35,2	22,2	23	72	174	-8,9	1,5	13	6,3	12,7	261	32 - 44	38	57	63,5	82 °
560897	8,5	104	25,4	25,4	6,5	6,5	35	50	41	90	174	-6,6	19,7	13	6,3	12,7	261	32 - 44	38	57	63,5	82 °
