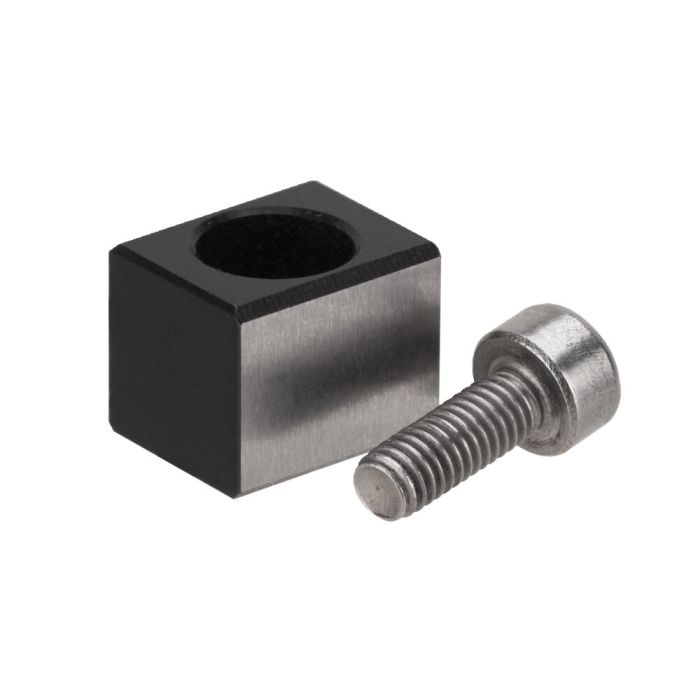

Indexing T-nut

For clamping modules with indexing, size 20.3

Order no.

550288

Order no.	Size	b	H	L	Weight [g]
430264	10.2 / 10.3 / 20	8	8	10	6
550288	20,3	10	8	20	15

Application:
Indexing T-nut is used for the precise positioning of workpieces or fixtures on a clamping module with indexing function.

Note:
Order no. 430264 incl. M3 fastening bolt.
Order no. 550288 incl. M4 fastening bolt.

More Information
Order no.	550288
Product type	Surface-mounting clamping modules, Installation clamping modules, Clamping stations
Operating mode	Mechanical, Hydraulic, Pneumatic
Size clamping module	20
Special features	With indexierung
