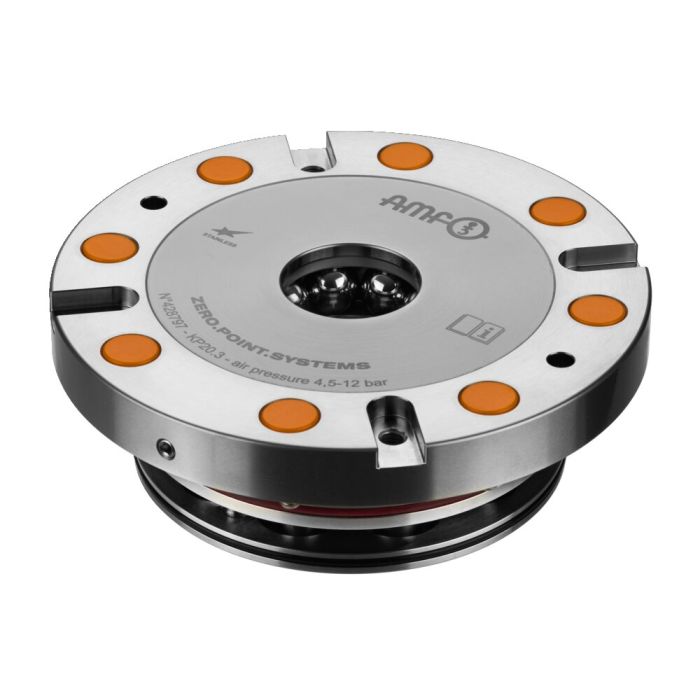

Installation clamping module with indexing
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The indexing function of the clamping module prevents the pallet from twisting, enabling exact positioning every 90°.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections:
1x opening (1), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 428797 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 17 |
| Automation query | Support control |
| Special features | With indexierung |
