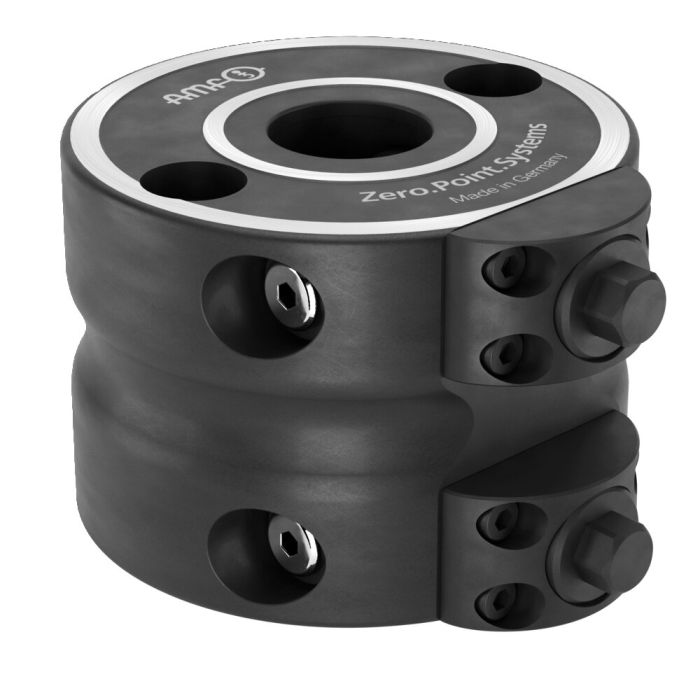

Double clamping module, mechanical

Application:
Mechanical "double clamping module" for setting time-optimised clamping during cutting and non-cutting machining. Especially suitable for the modular design of clamping solutions via zero point clamping system.

Note:
This clamping system combines two separately operable mechanical zero-point clamping systems.
In conjunction with the pull-stud for T-slots, this clamping module is simply and quickly fastened to the machine table via clamping slots. Additional height adapters, workpieces or fixtures can be fastened to the top with pull-studs.

Pull-stud: The zero point, timing or undersize pull-stud (without colour coding) can be used, depending on the application. The BM10 clamping module can only be used with the size 10 pull-studs in the M8 version, BM20 only with the size 20 pull-studs in the M12 version.

The fastening bolts are supplied as standard.

This clamping module can be used at ambient temperatures of up to max. 200°C.
* Please observe the installation instructions.
