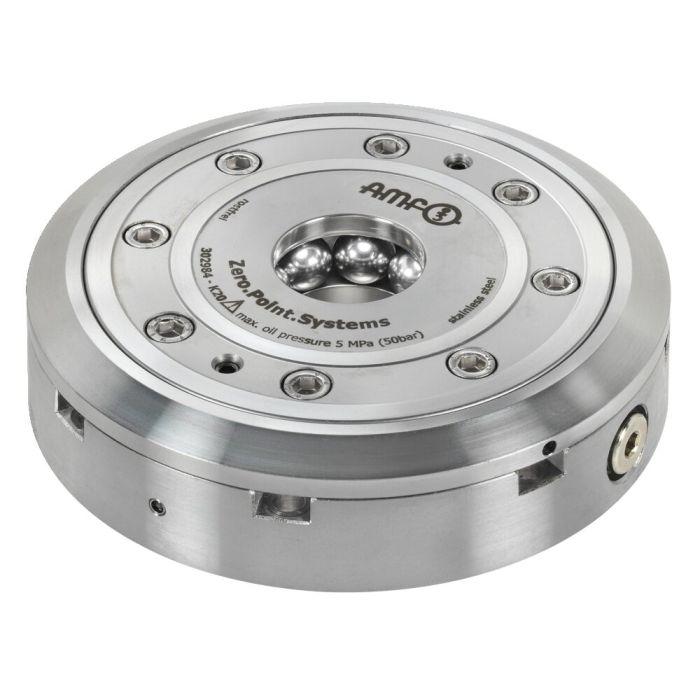

Installation clamping module, flange version
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The flange version permits a simplified installation in the body. This is exactly positioned via the centring function. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, this must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module has two connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).
* Please observe the installation instructions.
| Order no. | 423988 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 17 |
| Special features | Flange version |
