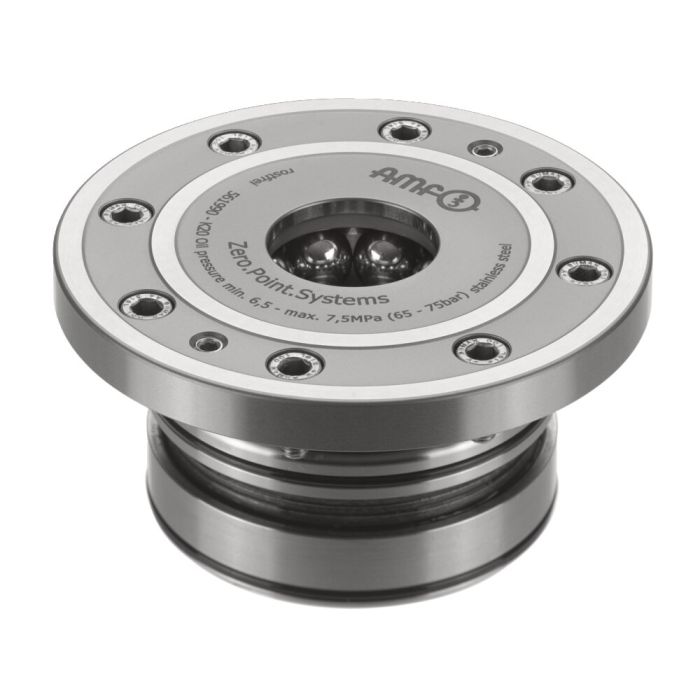

Installation clamping module
Design:
Zero-point clamping system with increased pull-in/locking force and centric blow-out.
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).
The clamping module with blow-out and support control has two connections:
1x hydr. opening (1), 1x pneum. Blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Installation drawings
| Order no. | 561990 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 30 |
| Automation query | Support control |
