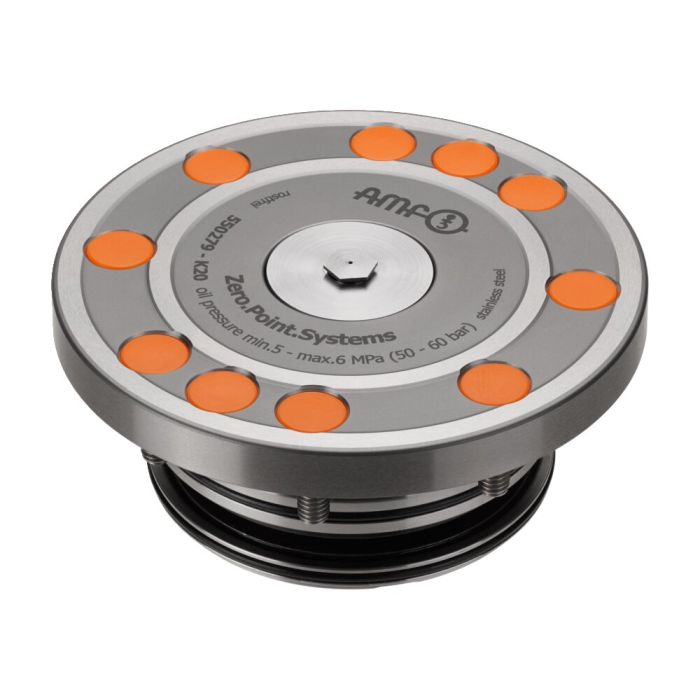

Installation clamping module with central lock for automation solutions
Design:
With central lock, blow-out, support control and opening control.
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
Central lock with pneum. cleaning function of support surfaces.
Fastening and installation of the pull-stud by means of DIN ISO 10642 countersunk head screw M12 12.9.
Opening control: Dynamic pressure with opened clamping module, flow-through with locked clamping module.
Support control via the blow-out function: Dynamic pressure with supported interchangeable pallet.
The installation clamping module is opened hydraulically and mechanically locked through spring force. Subsequent uncoupling of the pressure line is possible at any time (module is clamped at normal pressure).
The clamping module has four connections:
1 = hydr. opening
3 = pneum. Blow-out and support control
4 = pneum. Opening control inlet
5 = pneum. Opening control outlet
* Please observe the installation instructions.
| Order no. | 550279 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 20 |
| Automation query | Opening control, Support control |
| Special features | With central lock |
