Flow meter
Design:

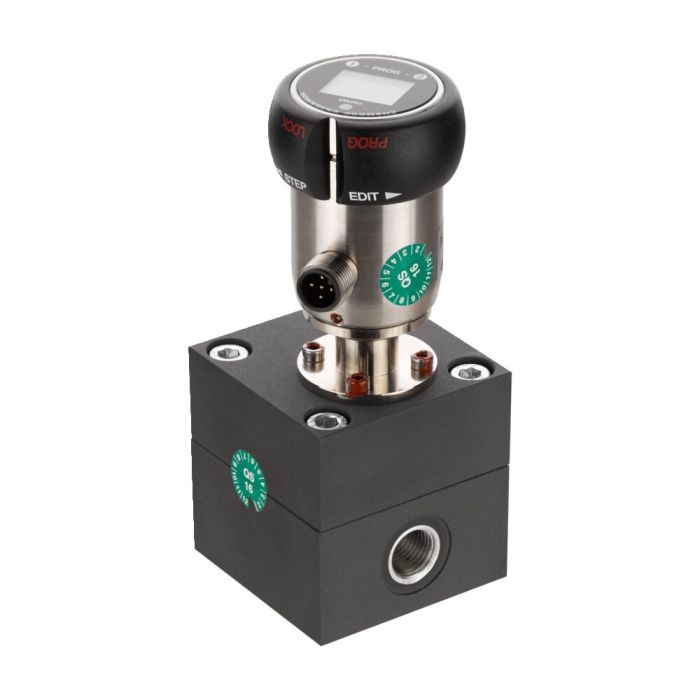

Flow meter for hydraulic volume flow of 0.02 - 2.0 l/min incl. 5-metre connecting cable.
Technical data:
Nominal diameter: DN008
Connection: Internal thread G1/4
Compressive strength: PN 200
Measurement range: 0.02 - 2.0 l/min
Medium temperature: - 25 .. + 80 °C
Ambient temperature: - 20 .. + 70 °C
Programming: via adjusting ring POM
Electrical connection: Round plug M12 x 1. 5-polig
Power supply: 18 .. 30 V DC
Protection class: IP 67
Hysteresis: adjustable
Display: LCD Display + LED
Application:
Through the very exact measurement resolution of this unit, it is possible to check and monitor whether the zero-point clamping system is in an opened or closed state.
The gearwheel flow meter measures the hydraulic flow in the connection lines of the AMF zero-point clamping system for automation and emits an output signal when the preset threshold value is reached.
| Order no. | 553154 |
|---|---|
| Product type | Einbau-Spannmodul |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40, 150/151 |
| Automation query | Verriergelungskontrolle, Opening control, Support control, Pull-stud sensing, Insular support, Sensor query |
