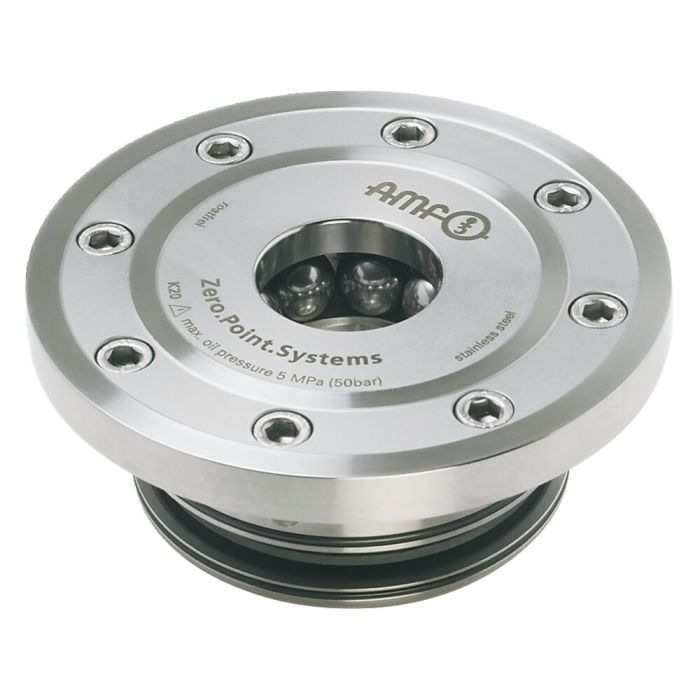

Installation clamping module for automation solutions
Design:
Centric blow-out, support control and opening control.
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
Opening control: Dynamic pressure with opened clamping module, flow-through with locked clamping module.
Support control via the blow-out function: Dynamic pressure with supported interchangeable pallet.
The installation clamping module is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).
The clamping module has four connections:
1 = hydr. opening
3 = pneum. Blow-out and support control
4 = pneum. Opening control inlet
5 = pneum. Opening control outlet
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 428409 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 20 |
| Automation query | Opening control, Support control |
