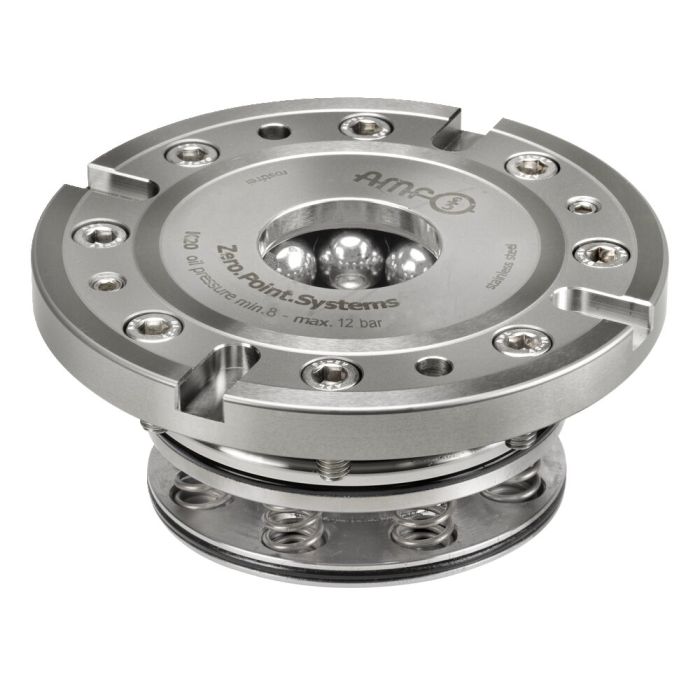

Installation clamping module with indexing
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The indexing function of the clamping module prevents the pallet from twisting, enabling exact positioning every 90°.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module with blow-out and support control has three connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 428441 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 17 |
| Automation query | Support control |
| Special features | With indexierung |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 20 for M16 engagement screw Nr. 554939 For clamping modules size 20, zero point pull-stud
- Pneumatic pressure booster set Nr. 421396 For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
- Cover ring for clamping module Nr. 550284 Suitable for installation and construction clamping modules, size 20
- Horizontal rapid-clamping cylinder Nr. 303065 Hydraulic opening, size KH20, manual run-out and run-in movements of the suspension piston
- Installation clamping module for automation solutions Nr. 550258 Pneumatic opening, size KP20.3, with locking control, opening control and support control
- Installation clamping module for automation solutions Nr. 550262 Pneumatic opening, size KP20.3, with locking control, opening control, support control, pull-stud sensing and insular support
- Clamping module with sensor query for opening and interlock Nr. 552964 Pneumatic opening, size KP20, retensioning necessary
