Pneumatic pressure booster set
Design:

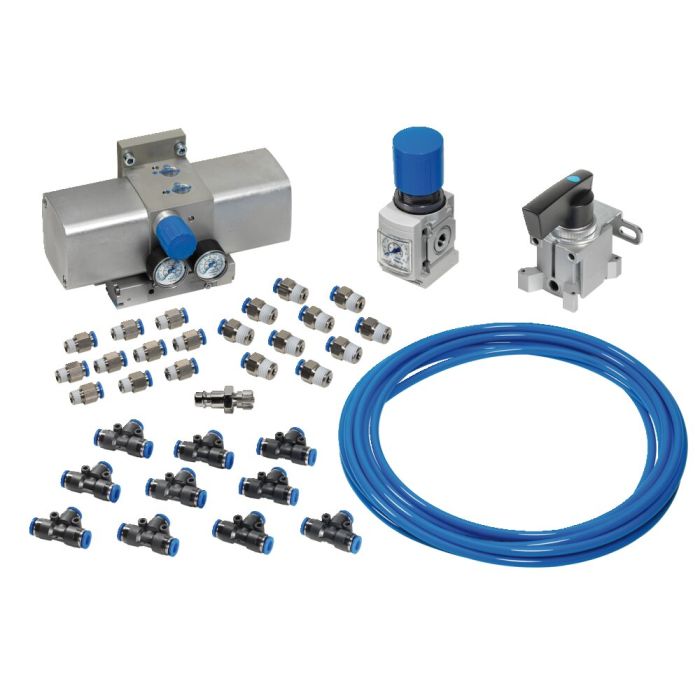

Pressure intensifier group with possibility to adjust the pneumatic output pressure, incl. manometer construction kit, sound absorbers, flange mounting, pressure control valve, manual direction valve, coupling plug, connections and plastic tube.
Application:
For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line.
Note:
The pressure intensifier can be mounted in every installation position. For operation, filtered (40μm), unlubricated compressed air as per ISO 8573-1 is required. The pressure intensifier sub-assembly is suitable for ambient temperatures of +5 – +60 °C.
| Order no. | 421396 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
