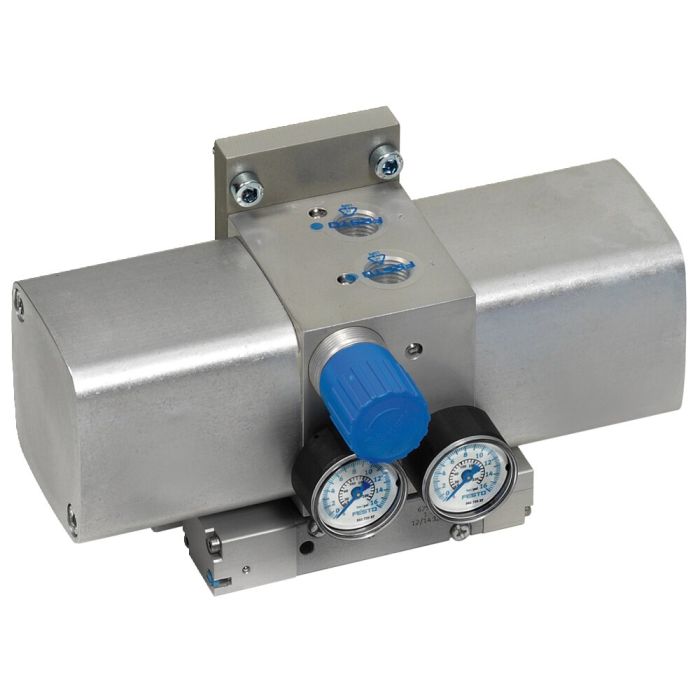

Pneumatic pressure booster
For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
Order no.
427088
Design:
Pressure booster with possibility to adjust the pneumatic output pressure, incl. accessories such as pressure gauge kit, sound absorbers and flange mounting.
Application:
For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line.
Note:
The pressure booster can be mounted in every installation position. For operation, filtered (40μm), unlubricated compressed air as per ISO 8573-1 is required. The pressure booster is suitable for ambient temperatures of +5 – +60 °C.
The accessories for the pressure booster still need to be installed.
| Order no. | 427088 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hose, pneumatic Nr. 430140 For the pneumatic connection of extension clamping modules or clamping stations
