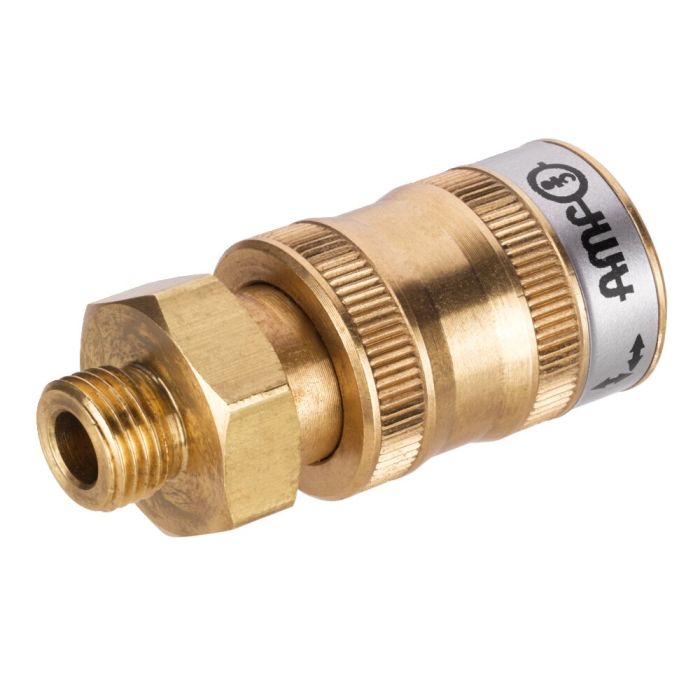

Quick fitting coupling, pneumatic
Max. operating pressure 12 bar, sleeve
Order no.
430066
Application:
This pneumatic quick-release coupling is particularly suitable for use in the AMF zero-point clamping technology of the zero-point system.
Note:
Sleeve with Order no. 430066:
Coupling valve with venting function and check valve. External thread G1/8.
Connector with Order no. 430041:
Dirt and shaving-repellent coupling connector with borehole for forced venting of the clamping station, fixture or zero-point clamping module. External thread G1/8.
Protective cap 6370ZSS-04 is supplied as standard. The sealing rings are not supplied as standard.
| Order no. | 430066 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pneumatic pressure booster set Nr. 421396 For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
