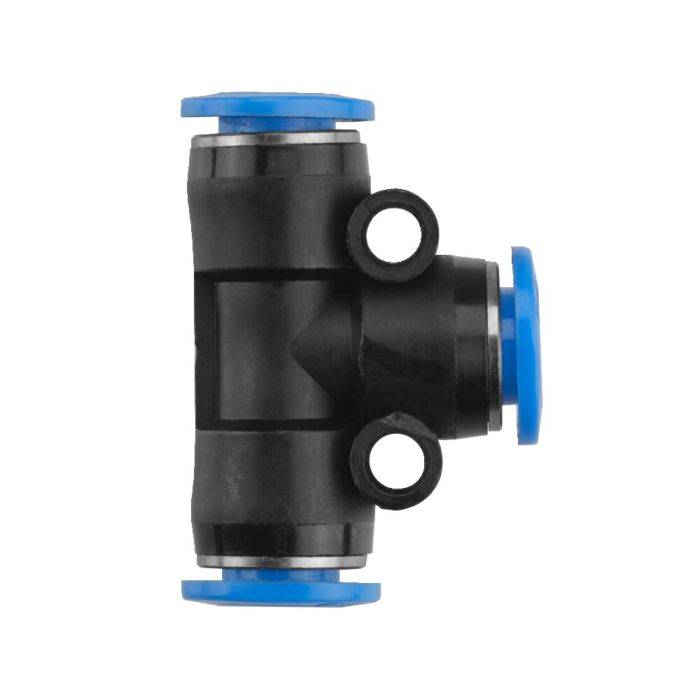

T-plug connection, pneumatic
To connect the pneumatic hoses
Order no.
567201
Application:
T-connectors are used to connect the pneumatic hoses.
| Order no. | 567201 |
|---|---|
| Product type | Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Hose, pneumatic Nr. 430140 For the pneumatic connection of extension clamping modules or clamping stations
- Pneumatic pressure booster Nr. 427088 For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
- Pneumatic pressure booster set Nr. 421396 For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
