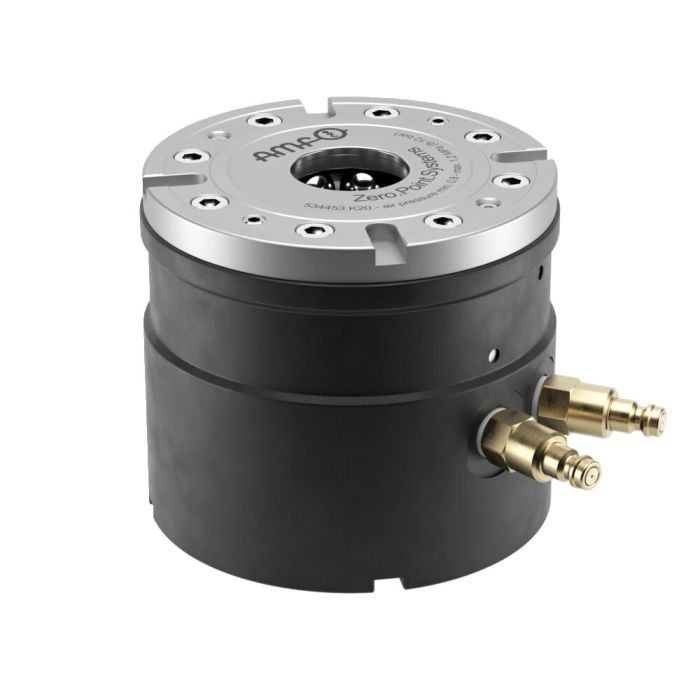

Assembly element BP10.3 and BP20, pneumatic, with indexing

Application:
The assembly element is used to clamp workpieces or fixtures with repetition accuracy directly onto the pneumatic clamping modules BP10.3 and BP20 using pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Thanks to the quadruple 90° indexing option, workpieces under large machining forces can be secured to prevent radial distortion.

Note:
Order no. for the centering sleeve Ø 16 mm: 78006
Order no. for the slot nuts: 430264
The pneum. quick-release coupling, connector version, and the fastening screw are supplied as standard.

* Please observe the installation instructions.

The clamping module has two connections:
BP10.3:
1 = Pneum. opening
5 = Vent
BP20:
1 = Pneum. opening
2 = Pneum. retensioning (turbo)

Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
