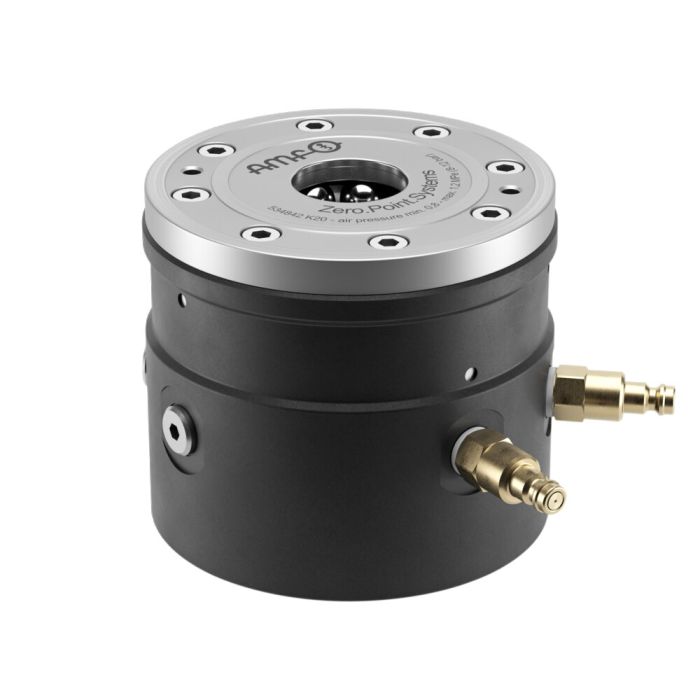

Assembly element BP10, BP10.3 and BP20, pneumatic
Application:
The assembly element is used to clamp with repetition accuracy workpieces or fixtures directly onto the pneumatic clamping modules BP10, BP10.3 and BP20 via pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Note:
Order numbers for the centering sleeves
- Ø 15 mm: 535732
- Ø 16 mm: 78006
The pneum. quick-release coupling, connector version, and the fastening screw are supplied as standard.
* Please observe the installation instructions.
The clamping module has two connections:
BP10 / BP20:
1 = Pneum. opening
2 = Pneum. retensioning (turbo)
BP10.3:
1 = Pneum. opening
5 = Vent
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 534842 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 35 |
| Pull-in/locking force [kN] | 17 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Pull-stud size 20 for M16 engagement screw Nr. 554939 For clamping modules size 20, zero point pull-stud
- Pneumatic pressure booster set Nr. 421396 For strengthening the operating pressure with pneumatic clamping modules and compensation for pressure fluctuations in the supply line
- Cover ring for clamping module Nr. 550284 Suitable for installation and construction clamping modules, size 20
- Clamping module with sensor query for opening and interlock Nr. 552964 Pneumatic opening, size KP20, retensioning necessary
