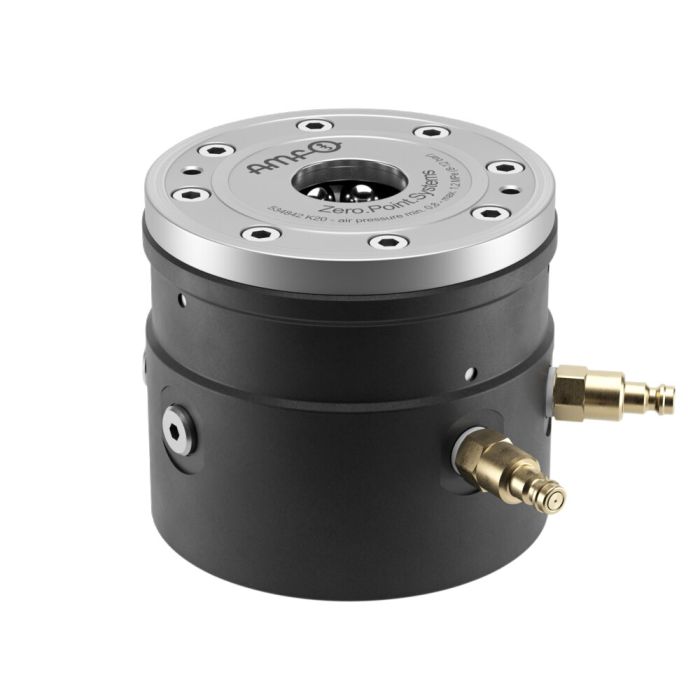

Assembly element BP10, BP10.3 and BP20, pneumatic

Application:
The assembly element is used to clamp with repetition accuracy workpieces or fixtures directly onto the pneumatic clamping modules BP10, BP10.3 and BP20 via pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.

Note:
Order numbers for the centering sleeves
- Ø 15 mm: 535732
- Ø 16 mm: 78006
The pneum. quick-release coupling, connector version, and the fastening screw are supplied as standard.

* Please observe the installation instructions.

The clamping module has two connections:
BP10 / BP20:
1 = Pneum. opening
2 = Pneum. retensioning (turbo)
BP10.3:
1 = Pneum. opening
5 = Vent

Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
