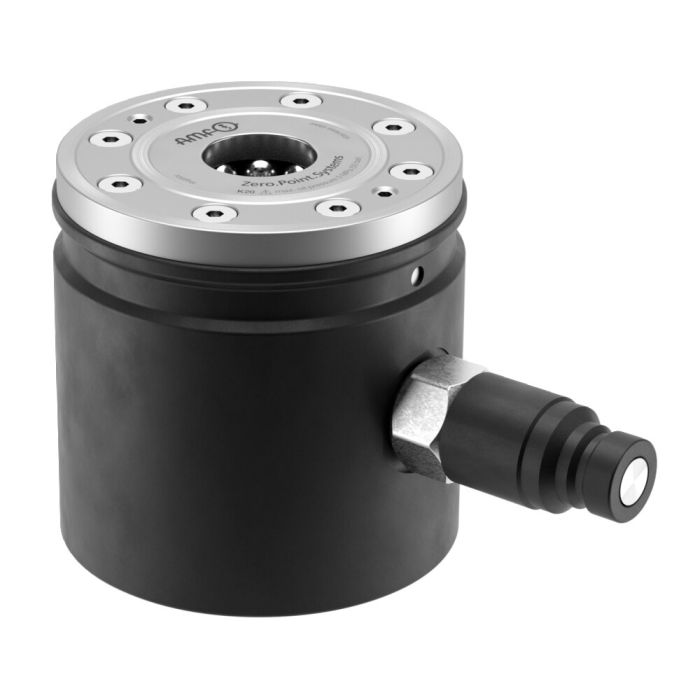

Assembly element BH10 and BH20, hydraulic
Application:
The assembly element is used to clamp with repetition accuracy workpieces or fixtures directly onto the hydraulic clamping modules BH10 or BH20 via pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Note:
Order numbers for the centering sleeves
- Ø 15 mm: 535732
- Ø 16 mm: 78006
The hydr. quick-release coupling, connector version, and the fastening screw are supplied as standard.
* Please observe the installation instructions.
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 534883 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 14 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Cover ring for clamping module Nr. 550283 Suitable for installation and construction clamping modules, size 10
- Installation clamping module for automation solutions Nr. 550261 Pneumatic opening, size KP10.3, with locking control, opening control, support control, pull-stud sensing and insular support
- Clamping module with sensor query for opening and interlock Nr. 552963 Pneumatic opening, size KP10, retensioning necessary
