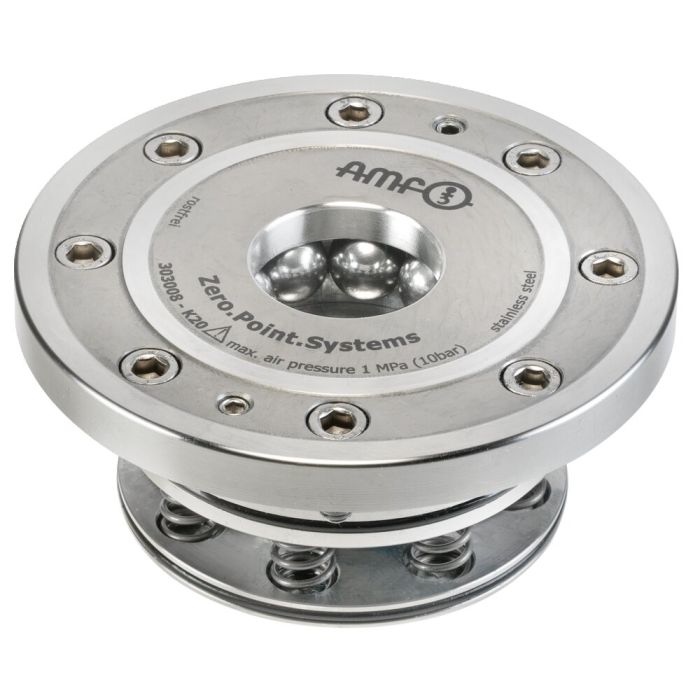

Installation clamping module
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and locked mechanically through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free). Use of the pneumatic pressure booster no. 6370ZVL is recommended.
The clamping module with blow-out and support control has three connections:
1x pneum. Opening (1) / 1x pneum. Retensioning (turbo) (2), 1x pneum. Blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 305375 |
|---|---|
| Product type | Einbau-Spannmodul |
| Operating mode | Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 8 |
| Automation query | Support control |
