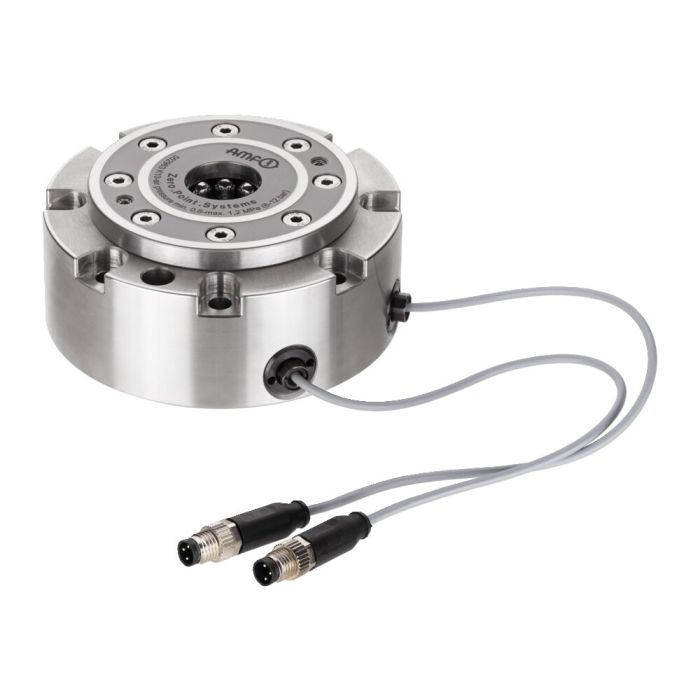

Clamping module with sensor query for opening and interlock
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module with sensor query contains 2 inductive sensors (connection type: S8 plug, cable length: 150 mm) for status check (opened / locked). This is pneumatically opened (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).
Use of the pneumatic pressure booster no. 6370ZVL is recommended.
The clamping module has two connections:
1 = pneum. opening
2 = pneum. retensioning (turbo)
* Please observe the installation instructions.
| Order no. | 552963 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 8 |
| Automation query | Locking control, Opening control |
