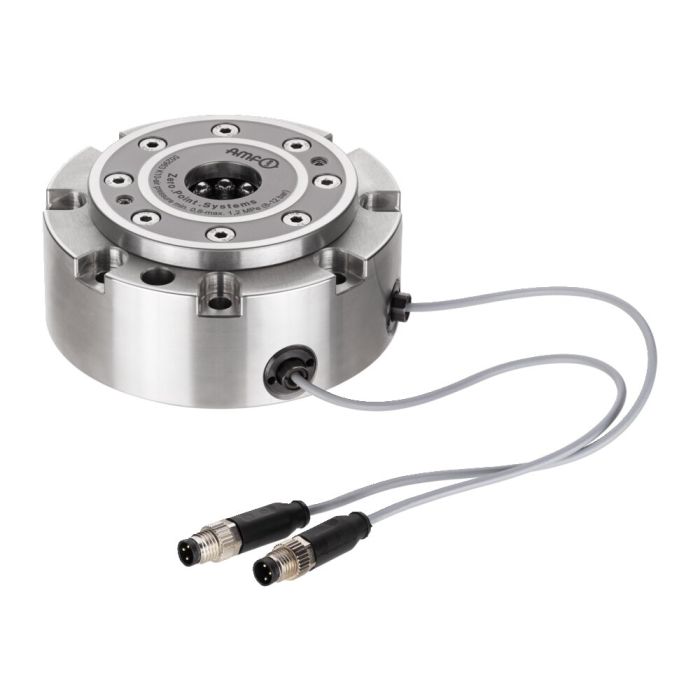

Clamping module with sensor query for opening and interlock
Pneumatic opening, size KP10.3
Order no.
552967
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The clamping module with sensor query has two inductive sensors (connection type: plug S8, cable length 150 mm) for the status check (opened / locked). This is opened pneumatically (1) and locked mechanically through spring force. Subsequent uncoupling of the pressure line is possible at any time (module is clamped at normal pressure).
The clamping module has one connection:
1 = pneum. opening
* Please observe the installation instructions.
| Order no. | 552967 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
| Automation query | Locking control, Opening control |
