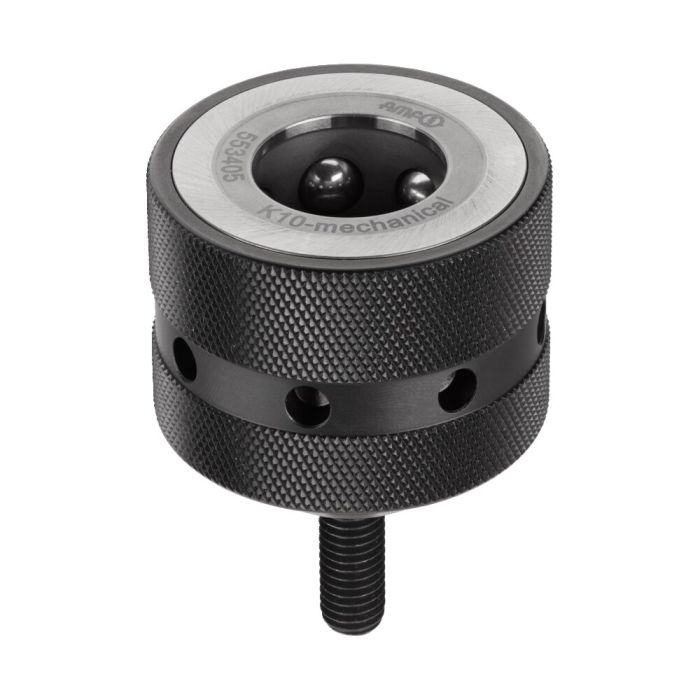

Clamping module, mechanical

Application:
Mechanical zero point clamping system for setting time-optimised clamping during cutting or non-cutting machining. Particularly suitable for the modular design of clamping solutions via zero point clamping system.

Note:
The mechanical zero-point clamping system has high holding, pull-in and locking forces. The B10 clamping module is fastened centrically with an M8 flat-head screw, the BM20 clamping module with an M12 cylinder screw.
The BM20 clamping module can only be used with the B20 pull-studs in the M12 version.
To open and close the clamping modules, we recommend the following AMF hook spanner:
- size 10= order no. 54940
- size 20= order no. 54973
A cylinder pin is supplied as standard. In addition, fastening bolts for use with the support elements (order no. 532390, 532374) and for use on a fixture are included.

* Please observe the installation instructions.
