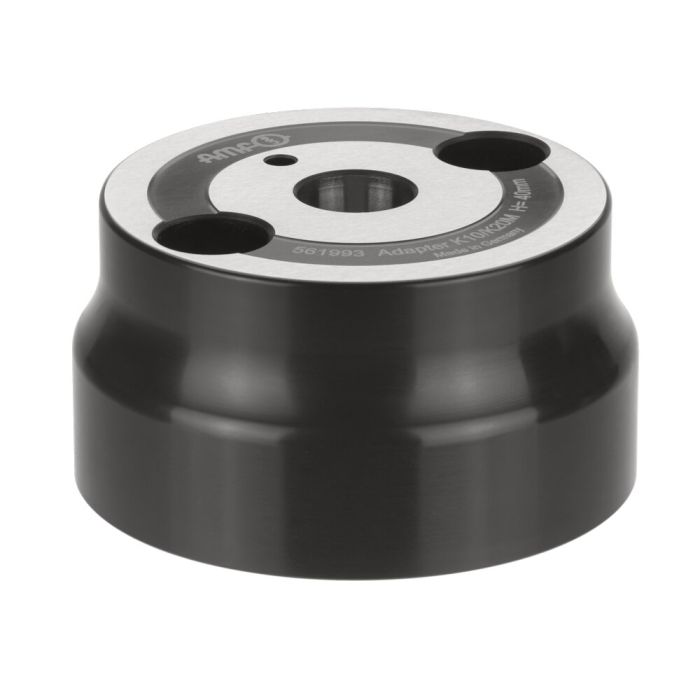

Adapter for clamping module, mechanical

Application:
Adapter for installation of the mechanical clamping module 6212M size BM20 (559094) to an intermediate or base element size B10.

Note:
The adapter can be aligned axially on the intermediate or base element using the centring sleeve and then bolted on.
The fastening bolts are supplied as standard.
Order numbers of the centring sleeves:
- size B10: order no. 535732

Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Particularly suitable for levelling workpieces or clamping fixtures at the necessary machining heights in the machine tool and clamping these securely.
