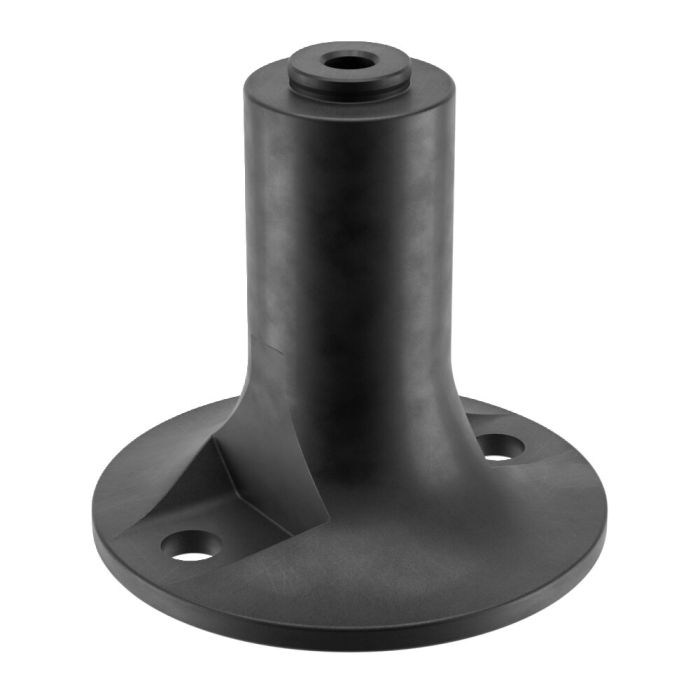

Support element, adjustable ± 5 mm
Application:
The support element enables workpieces to be received into the bore for the pull-stud, depending on size (10 or 20) and to be clamped to the main or the intermediate element.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Note:
Two fastening bolts and a threaded stud are supplied as standard.
Order numbers of the centring sleeves
- Ø15: order no. 535732
- Ø16: order no. 78006
- Ø22: order no. 78238
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 532390 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 10 for M8 engagement screw Nr. 303610 For clamping modules size 10, zero point pull-stud
