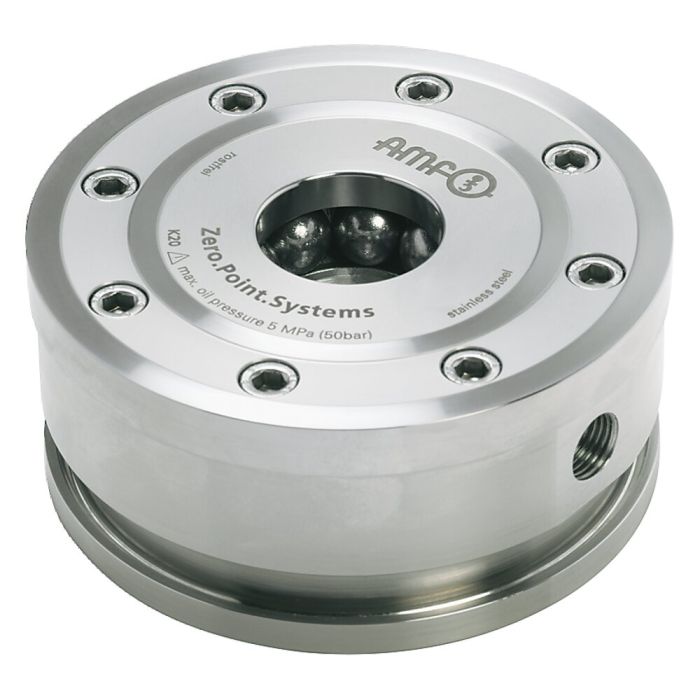

Surface-mounted clamping module
Application:
Zero-point clamping system in combination with hook clamping flange 63707B for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Individual housing
| Order no. | 303545 |
|---|---|
| Product type | Surface-mounting clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
| Automation query | Support control |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Clamping flange, Set Nr. 426825 Used to fasten surface-mounted clamping modules on the machine table, size 10
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Installation clamping module for automation solutions Nr. 550261 Pneumatic opening, size KP10.3, with locking control, opening control, support control, pull-stud sensing and insular support
- Clamping module with sensor query for opening and interlock Nr. 552963 Pneumatic opening, size KP10, retensioning necessary
