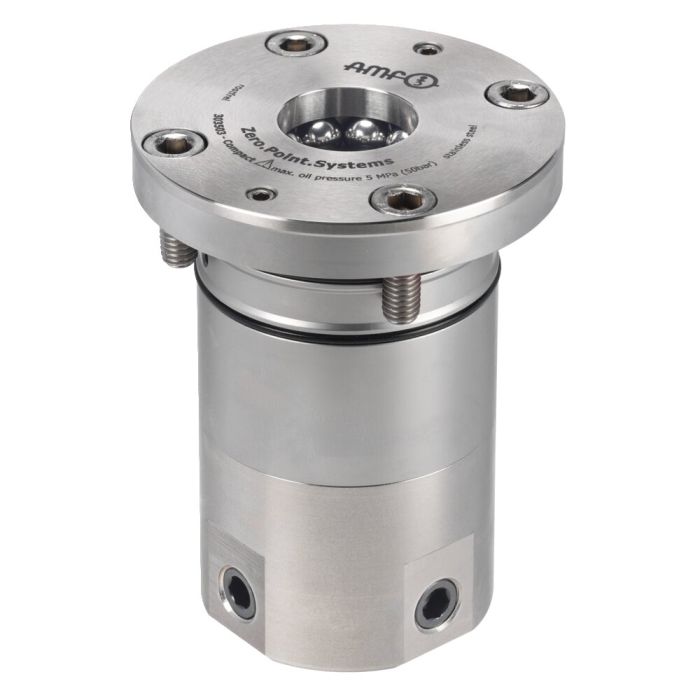

Compact cylinder
Hydraulic opening, size KH10
Order no.
303503
Application:
For retrofitting to modular profiles, columns, tombstones and cubes. Can be used with thin wall sections.
Note:
There are six standard connection options. Four connections are located on the side of the lateral surface at 90° intervals. Seals on the external diameter make it possible to connect a deep-hole drill bore in the base plate. Connection is also possible on the floor surface of the compact cylinder.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 303503 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 1.3 |
