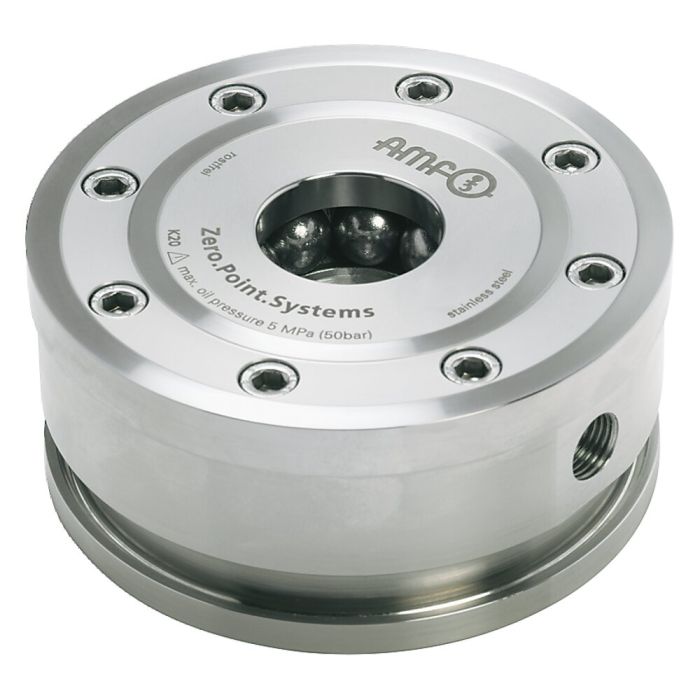

Surface-mounted clamping module
Application:
Zero-point clamping system in combination with hook clamping flange 63707B for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
- Individual housing
| Order no. | 302877 |
|---|---|
| Product type | Surface-mounting clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 40 |
| Holding force [kN] | 105 |
| Pull-in/locking force [kN] | 40 |
| Automation query | Support control |
