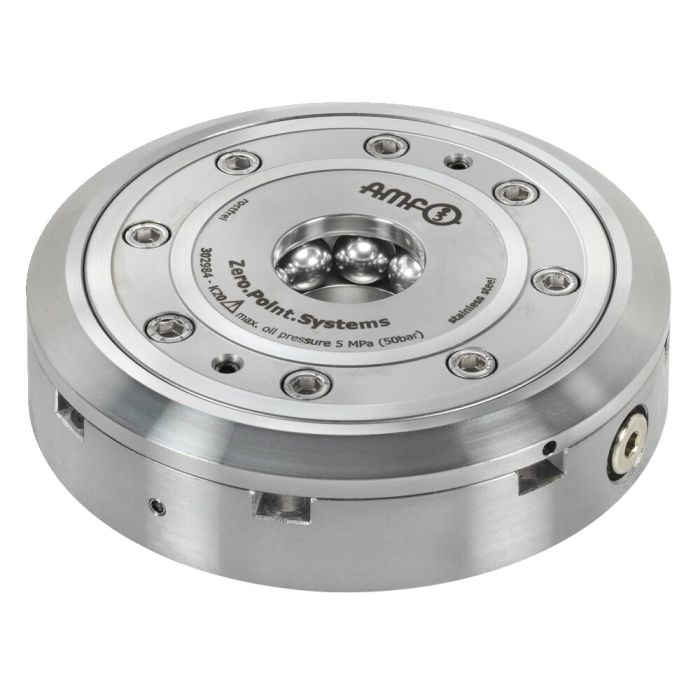

Installation clamping module, flange version
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The flange version permits a simplified installation in the body. This is exactly positioned via the centring function. The clamping module can be operated from the outside via a tube connection or from the bottom via an O-ring connection.
This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections:
1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
| Order no. | 424143 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 40 |
| Holding force [kN] | 105 |
| Pull-in/locking force [kN] | 40 |
| Automation query | Support control |
| Special features | Flange version |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 40 for M18 engagement screw Nr. 554942 For clamping modules size 40, zero point pull-stud
- Coupling mechanism adapter Nr. 424184 Suitable for installation clamping module nos. 6151HA / 6151L, size 40
- Cover ring for clamping module Nr. 550285 Suitable for installation and construction clamping modules, size 40
- Horizontal rapid-clamping cylinder Nr. 303107 Hydraulic opening, size KH40, manual run-out and run-in movements of the suspension piston
- Clamping module with sensor query for opening and interlock Nr. 552965 Pneumatic opening, size KP40, retensioning necessary
