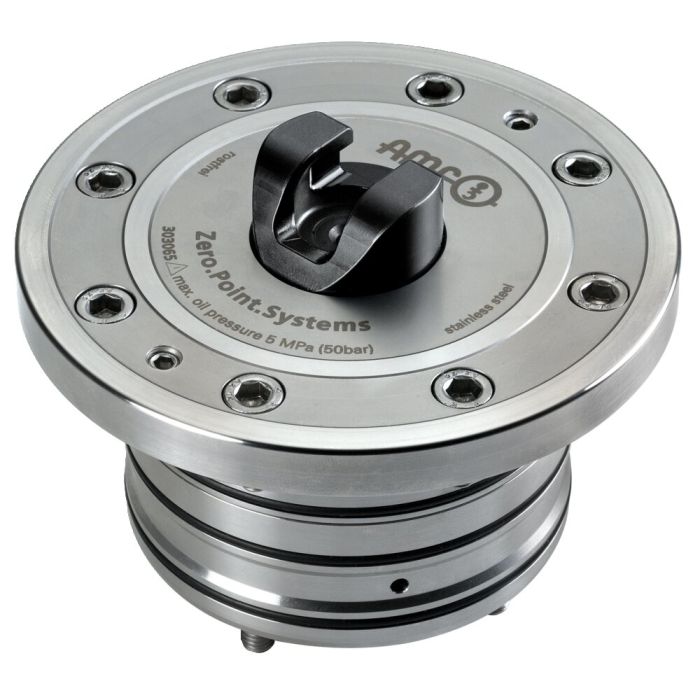

Horizontal rapid-clamping cylinder
Design:
As standard, there is a manual (hand power) or hydraulic run-out and run-in movements of the suspension piston.
- Cylinder has one connection: 1x hydr. opening (1),
- Cylinder with hydraulic advance motion has three connections: 1x hydr. opening (1),
Run out 1x hydr. suspension piston opening (5), run in 1x hydr. suspension piston opening (4).
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining. For installation in clamping profiles, cubes and towers. The horizontal toggle clamp cylinder is used to change fixtures quickly and easily by means of the suspension piston with hand force, hydraulic or handling device.
Note:
The horizontal rapid-clamping cylinder has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). The maximum weight per suspension piston must not exceed 5 kN at KH20 and 8 kN at KH40.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 303107 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 40 |
| Holding force [kN] | 105 |
| Pull-in/locking force [kN] | 40 |
