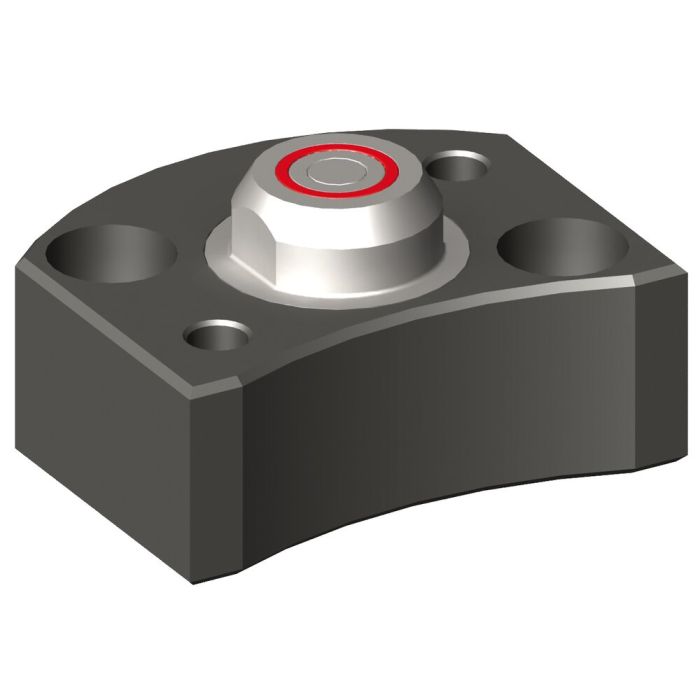

Coupling mechanism adapter
Suitable for installation clamping module nos. 6151HA / 6151L, size 20
Order no.
424002
Application:
Couplings are used for loss-free transfer of liquid and gaseous media and are adjusted to the cover height of the installation clamping modules.
Note:
The coupling mechanism and nipple must be guided approx. 2-3 mm before contact with the axial sealing surfaces. The radial position tolerance (+/- 0.2mm) must not be exceeded. The couplings can only be coupled in a depressurised state.
The separating force due to hydraulic pressure between the coupling nipple and mechanism is given by the formula F [N] = 15.4 x p [bar] and must be taken into account.
| Order no. | 424002 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic, Pneumatic |
| Size clamping module | 20 |
