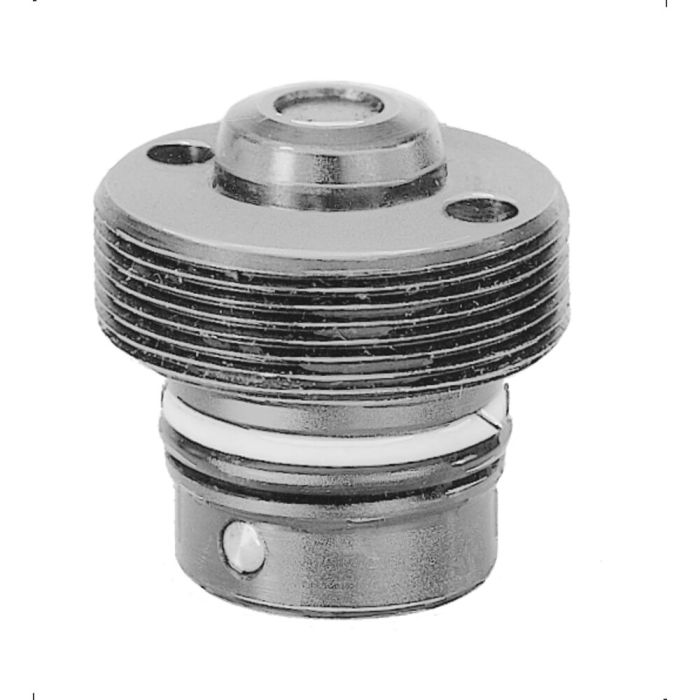

Screw-In Coupling Nipple
Max. operating pressure 400 bar
Order no.
430058
Application:
Couplings are used for the leakage-free connection of hydraulic oil supplies.
Note:
The coupling mechanism and nipple must be guided approx. 2-3 mm before contact with the axial sealing surfaces. The radial position tolerance (+/- 0.2 mm) must not be exceeded. The couplings can only be coupled in a depressurised state. The separating force due to hydraulic pressure between the coupling nipple and mechanism is given by the formula F [N] = 15.4 x p [bar] and must be taken into account.
| Order no. | 430058 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Pneumatic, Hydraulic |
| Size clamping module | 5, 10, 20, 40, 140/141, 150/151, 250/251, 260, 270 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Coupling mechanism adapter Nr. 424002 Suitable for installation clamping module nos. 6151HA / 6151L, size 20
