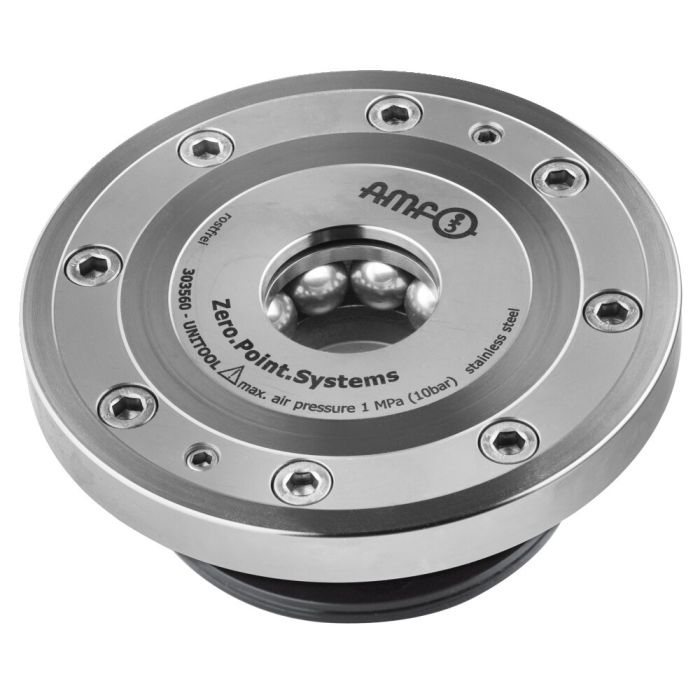

Installation clamping module “Unitool”
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). Use of the pneumatic pressure booster 6370ZVL-005 is recommended.
The clamping module has two connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).
Use "Unitool" modules exclusively with "Unitool" modules in one clamping.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 303560 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 30 |
