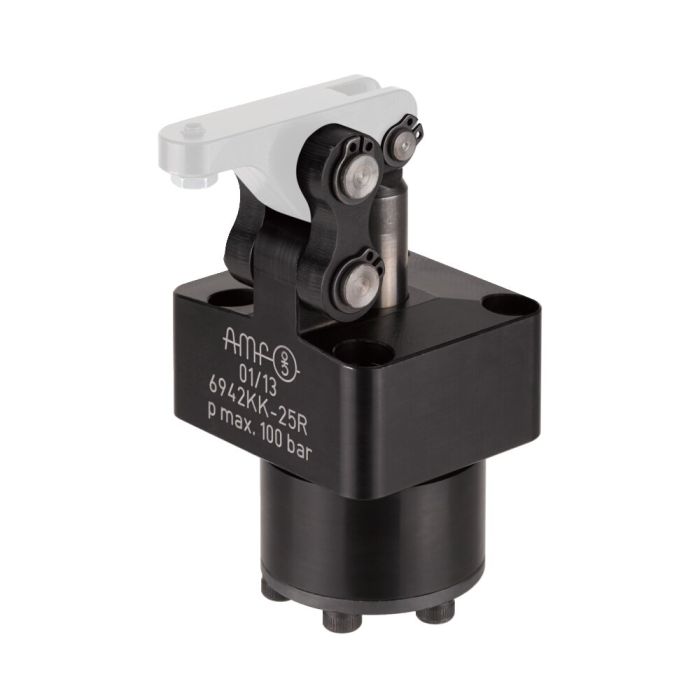

Link clamp
Max. clamping force 10,5 kN, max. piston force 15,9 kN, stroke 29,5 mm, clamp arm right
| Order no. | Article no. | Clamping force
at 100 bar
[kN] | Piston force
at 100 bar
[kN] | Clamping stroke
[mm] | Total stroke
[mm] | Extra stroke
[mm] | Vol. Sp
[cm³] | Vol. Lo
[cm³] | Eff. piston area Sp
[cm²] | Eff. piston area Lo
[cm²] | Md max.
[Nm] | Weight
[g] | Availability | Your Price |
| 327585 | 6942KK-25R | 3,2 | 4,9 | 17,5 | 19,0 | 1,5 | 8,6 | 6,6 | 4,9 | 3,8 | 6,0 | 752 | | |
| 328526 | 6942KK-32R | 5,3 | 8,0 | 22,5 | 24,0 | 1,5 | 16,5 | 13,3 | 8,0 | 6,5 | 7,6 | 1098 | | |
| 328534 | 6942KK-38R | 7,5 | 11,3 | 24,5 | 26,0 | 1,5 | 27,8 | 22,9 | 11,3 | 9,3 | 11,0 | 1549 | | |
| 328625 | 6942KK-45R | 10,5 | 15,9 | 28,0 | 29,5 | 1,5 | 44,5 | 35,8 | 15,9 | 12,8 | 13,0 | 2362 | | |
| 552013 | 6942KK-56R | 17,0 | 25,5 | 33,0 | 34,5 | 1,5 | 84,2 | 71,7 | 25,5 | 21,7 | 28,0 | 3565 | | |
| | | | | | | | | | | | | | |
| Order no. | A | A1 | b | C | D | E | F | G | H | H1 | H2 | H3 | H4 | I | Dia. K | L | m | N | P | O | R | S | U | V | X | ØG2 | OR-1
O-ring Order No. | G3 x depth | R ±0,2 | dia. T | dia. W | X1 | dia. Y x max. depth |
| 327585 | 46,00 | 15,8 | 16,0 | 24,0 | 3,5 | 0,5 | 17,5 | G1/8 | 25 | 83 | 58,0 | 64,0 | 29,0 | 13 | 39,9 | 54 | 17,0 | 5,5 | 12,0 | 18 | 34 | 45 | 9 | 26,0 | 67,5 | 5,5 | 161810 | M5 x 13 | 34 | 3 | 40,5 | 0,5 x 45° | 10 x 0,1 |
| 328526 | 53,25 | 13,7 | 18,5 | 28,0 | 3,5 | 2,0 | 21,0 | G1/8 | 28 | 95 | 66,5 | 74,5 | 32,0 | 13 | 47,9 | 61 | 20,0 | 5,5 | 13,5 | 22 | 40 | 51 | 11 | 30,0 | 76,8 | 5,5 | 161810 | M5 x 13 | 40 | 3 | 48,5 | 0,5 x 45° | 10 x 0,1 |
| 328534 | 60,50 | 16,0 | 21,0 | 31,5 | 3,0 | 1,5 | 22,5 | G1/8 | 28 | 106 | 72,0 | 81,0 | 37,0 | 13 | 54,9 | 69 | 23,5 | 6,5 | 16,0 | 24 | 47 | 60 | 12 | 33,5 | 72,9 | 6,8 | 161810 | M6 x 13 | 55 | 3 | 55,5 | 0,5 x 45° | 10 x 0,1 |
| 328625 | 71,00 | 18,7 | 24,5 | 37,0 | 3,0 | 2,5 | 26,5 | G1/4 | 30 | 124 | 82,0 | 96,0 | 43,5 | 14 | 64,9 | 81 | 27,5 | 7,5 | 19,0 | 30 | 55 | 70 | 15 | 39,5 | 72,9 | 6,8 | 161810 | M6 x 13 | 55 | 3 | 65,5 | 0,5 x 45° | 10 x 0,1 |
| 552013 | 86,00 | 30,2 | 30,0 | 45,0 | 3,0 | 2,5 | 32,5 | G1/4 | 35 | 140 | 89,0 | 105,0 | 47,0 | 14 | 74,9 | 94,5 | 31,5 | 11,0 | 22,0 | 32 | 63 | 85 | 16 | 45,0 | 67,5 | 8,7 | 161810 | M8 x 17 | 63 | 3 | 75,5 | 0,5 x 45° | 10 x 0,1 |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
Design:
Hardened, tempered and burnished steel. Supplied with compression screw.
Application:
For link clamp 6942KK.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 328625 |
|---|
| Product type | Link clamp |
|---|
| Max. clamping force [kN] | 10.5 |
|---|
| Max. operating pressure [bar] | 100 |
|---|
| Stroke [mm] | 29.5 |
|---|
