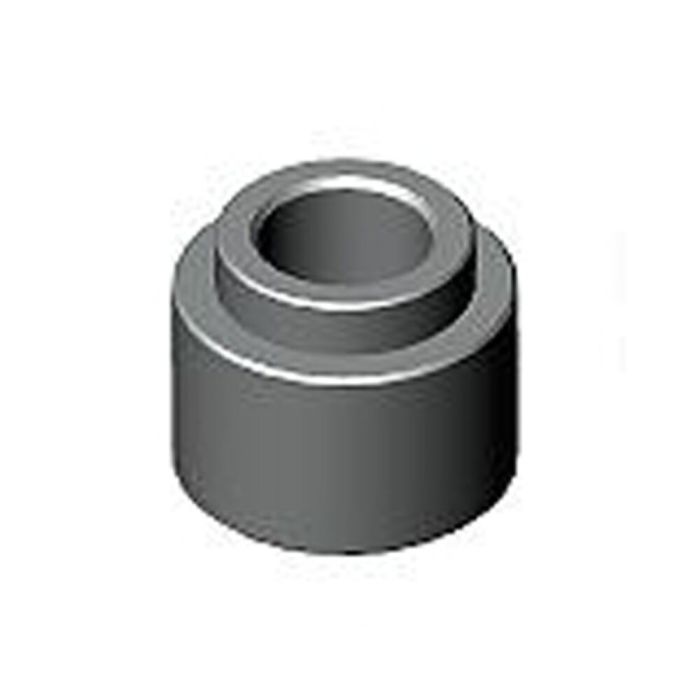

Locating-support pin, round

Dist. fr. face to loc. holes 30 mm, support height 25 mm, dia. drilling 16 mm

Order no.

88864

Order no.	Article no.	dia. D F7	Dist. fr. face to loc. holes dia. D1 ±0.01	Support height H ±0.01	Weight [g]
88864	6363-12-071	16	30	25	220
88872	6363-16-071	22	40	30	635

Order no.	dia. D2	E	F	H1	dia. S	dia. S1
88864	39,8	10	16	32	13	20
88872	60,0	13	22	40	17	26

More Information
Order no.	88864
Weight [g]	220

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Support-stop block Nr. 300319 Support height 1 25 mm, support height 2 30 mm, length 80 mm, width 39 mm
