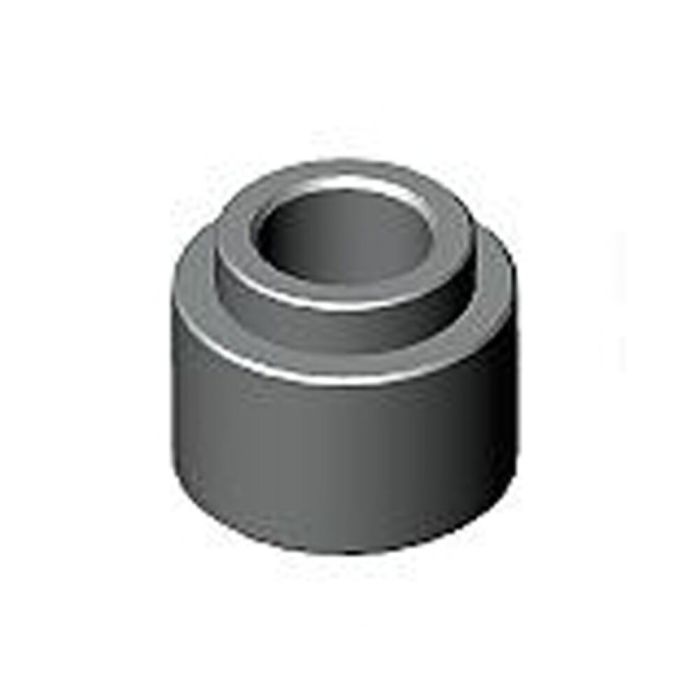

Locating-support pin, round
Dist. fr. face to loc. holes 40 mm, support height 30 mm, dia. drilling 22 mm
| Order no. | Article no. | dia. D F7 | Dist. fr. face to loc. holes dia. D1 ±0.01 | Support height H ±0.01 | Weight
[g] | Availability | Your Price |
| 88864 | 6363-12-071 | 16 | 30 | 25 | 220 | | |
| 88872 | 6363-16-071 | 22 | 40 | 30 | 635 | | |
| | | | | | | |
| Order no. | dia. D2
| E | F | H1 | dia. S | dia. S1 |
| 88864 | 39,8 | 10 | 16 | 32 | 13 | 20 |
| 88872 | 60,0 | 13 | 22 | 40 | 17 | 26 |
| | | | | | |
More Information | Order no. | 88872 |
|---|
