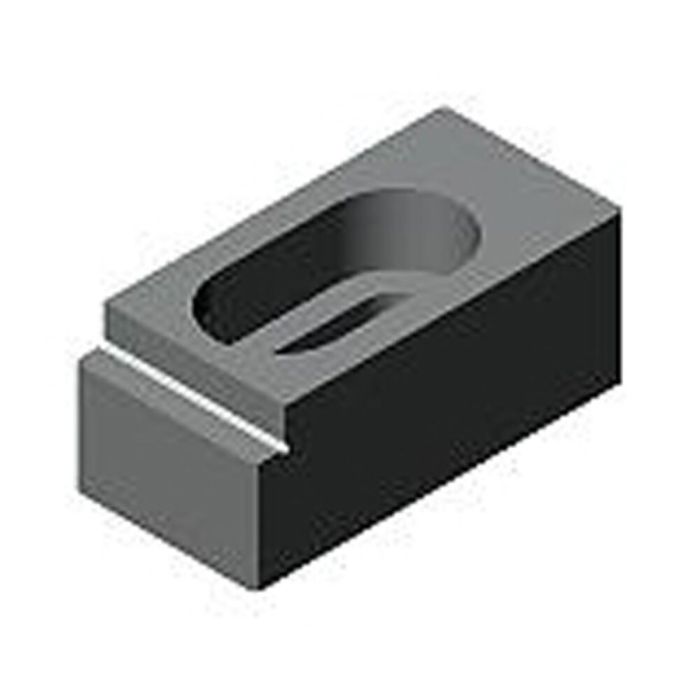

Support-stop block
Support height 1 30 mm, support height 2 40 mm, length 100 mm, width 49 mm
| Order no. | Article no. | Support height H ±0.01 | Support height H1 ±0.01 | Weight
[g] | Availability | Your Price |
| 300301 | 6363-16-012-2 | 30 | 40 | 1100 | | |
| 300319 | 6363-12-012-2 | 25 | 30 | 500 | | |
| | | | | | |
| Order no. | b | F | L | L1 | L2 | L3 | S | S1 |
| 300301 | 49 | 16 | 100 | 8 | 28 | 36 | 17,0 | 32 |
| 300319 | 39 | 11 | 80 | 6 | 21 | 30 | 12,5 | 26 |
| | | | | | | | |
More Information | Order no. | 300301 |
|---|
