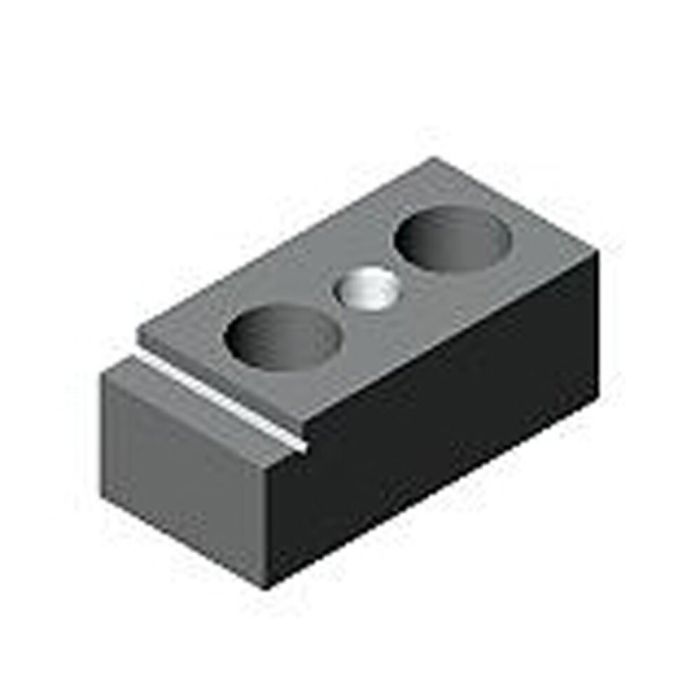

Support-stop block, narrow

Dist. fr. face to loc. holes 90 mm, support height 40 mm, dia. drilling 22 mm, grid 50 mm, length 99 mm

Order no.

88732

Order no.	Article no.	Dist. fr. face to loc. holes A ±0.01	Dist. fr. face to loc. holes I ±0.01	Support height H ±0.01	Support height H1 ±0.01	dia. D F7	R ±0.01	Weight [g]
88724	6363-12-060	15	70	25	30	16	40	450
88732	6363-16-060	20	90	30	40	22	50	840

Order no.	b	E	F	L	m	dia. S	dia. S1	L1	L2
88724	39	10	16	79	M12	13	20	19,5	24
88732	48	13	22	99	M16	17	26	24,0	29
