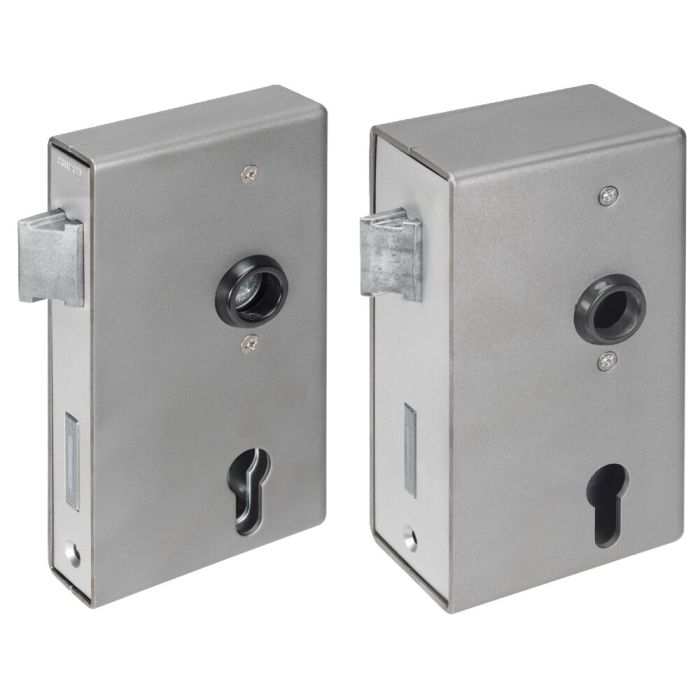

Lock case, bare-metal
With zinc-plated lock no. 142U-**, round cylinder with night latch function, case width 30 mm
Order no.
14324
Note:
Starting with a case width of 50 mm, we recommend use of the extended spring bolt no. 142U-F35.
Classification to DIN EN 12209: 2S500F2EA20
| Order no. | 14324 |
|---|---|
| Closure | Round cylinder with night latch function (RZW) |
| Backset [mm] | 60 |
| Case width [mm] | 30 |
