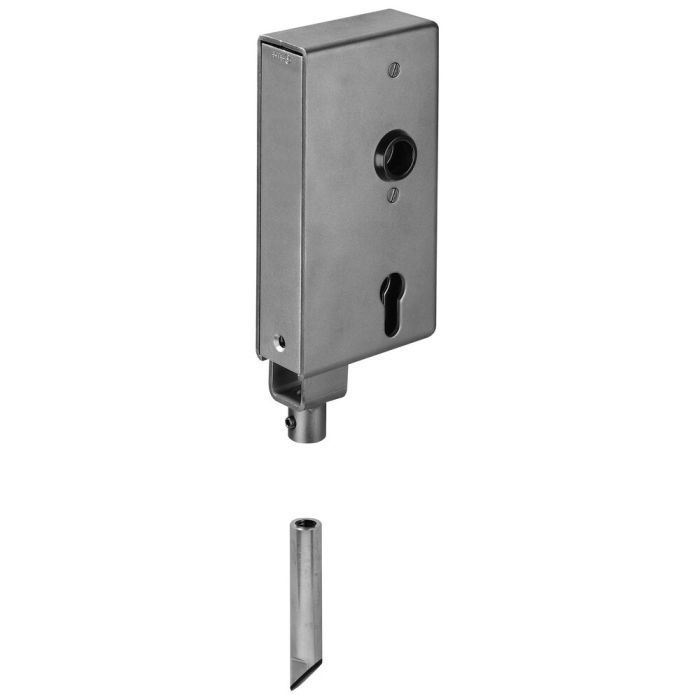

Lock case for downward locking, bare-metal
With zinc-plated lock no. 142V, without spring bolt and bolt, case width 40 mm
Order no.
10405
Application:
This cased lock with downward locking spring bolt is suitable for doors and gates at which a large clearance width is required by a combined fixed/pass-through gate or a wing gate or sliding gate. This lock eliminates the need for a centre post. The vertical movement is achieved via the lever handles or the night latch function.
Note:
Rectangular tube, M10 studding and ramp shoe are not in our scope of supply.
| Order no. | 10405 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Field of application | Two-leaf doors, Sliding-door |
| Backset [mm] | 60 |
| Case width [mm] | 40 |
| Special features | Multipoint locking |
