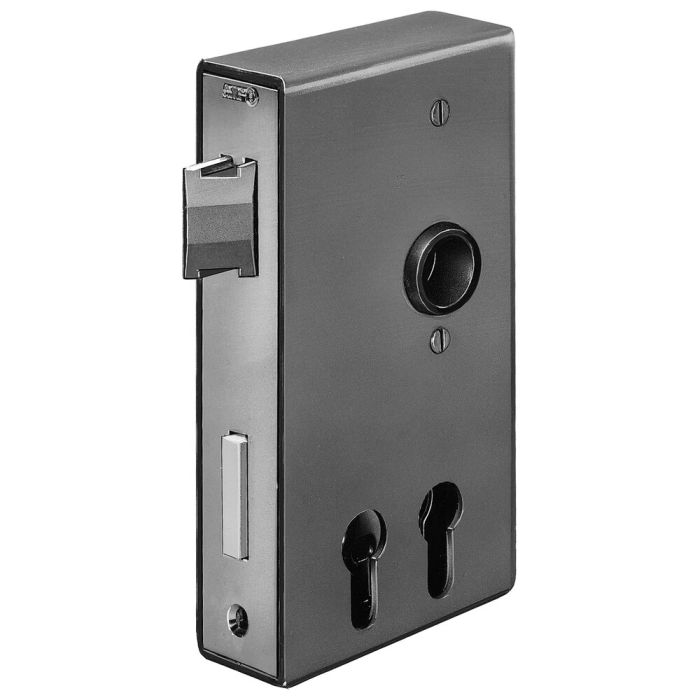

Lock case for two profile cylinders, bare-metal
With zinc-plated lock no. 142D-**, case width 30 mm
Order no.
11163
Application:
The practical solution when two people (or groups of people) require independent access: for example fire-brigade approaches or waste-container enclosures. The cased lock with two profile cylinders permits access for the fire brigade or disposal companies via general key, and can also be integrated into the normal master-key system.
Note:
- Installation of two profile cylinders that can be operated independently of one another required
- Cam position up to 45°
| Order no. | 11163 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Field of application | Two-sided locking option |
| Backset [mm] | 30, 60 |
| Case width [mm] | 30 |
| Special features | Double cylinder |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Short plate for two profile cylinders Nr. 16295 Light-alloy, silver-coloured (F1), with bore for lever actuation
- Lever handles, straight Nr. 15388 Light-alloy, silver-coloured (F1), lever handles pair, with handle pin
- Striking box, bare-metal Nr. 14704 For welding for double gates, can be used for left or right closing, case width 30 mm
