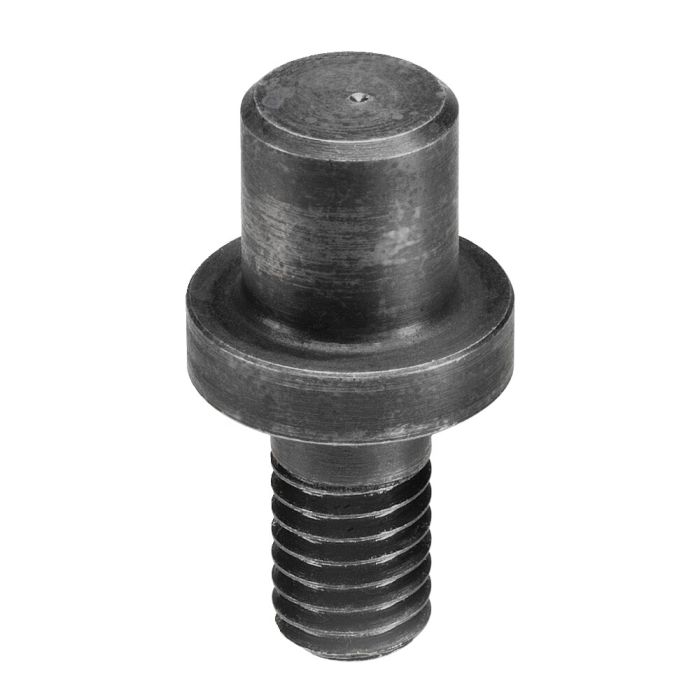

Loose pin with nut
Blued, ⌀ pin 7 mm, thread size M6
Order no.
47852
* Pin diameter = nominal diameter -0.1 mm (tolerance class h12)
| Order no. | 47852 |
|---|---|
| Finishing | Blued |
| Pin spacing min. [mm] | 40 |
| Pin spacing max. [mm] | 125 |
| Pin diameter [mm] | 7 |
| Special features | With replaceable pins |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hinged pin wrench for nuts with 2 holes with torque-wrench fitting Nr. 50104 Blued, ⌀ nut 40-80 mm, suitable for 764AZ4 ⌀ pin 4+5+6+7+8 mm, drive SW 3/4 inch
- Hinged pin wrench for nuts with 2 holes with torque-wrench fitting Nr. 50112 Blued, ⌀ nut 80-125 mm, suitable for 764AZ4 ⌀ pin 4+5+6+7+8 mm, drive SW 3/4 inch
-
