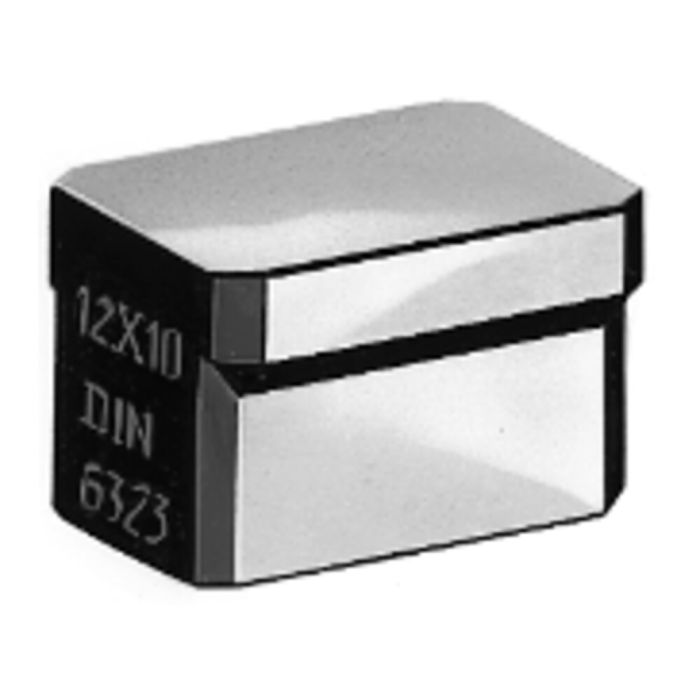

Loose type tenons
Nominal width of fixture/machine 20 mm/16 mm, form A
Order no.
71852
Application:
After rough alignment of fixture, the tenons DIN 6323 are pushed into T-slot from the side. No fixed T-nuts can obstruct the transport of fixtures and no damage to machine tables can occur.
| Order no. | 71852 |
|---|---|
| Produkttyp | Type tenons |
| Nut [mm] | 16 |
| Länge [mm] | 32 |
| Breite [mm] | 20 |
| Höhe [mm] | 14 |
| Weight [g] | 60 |
