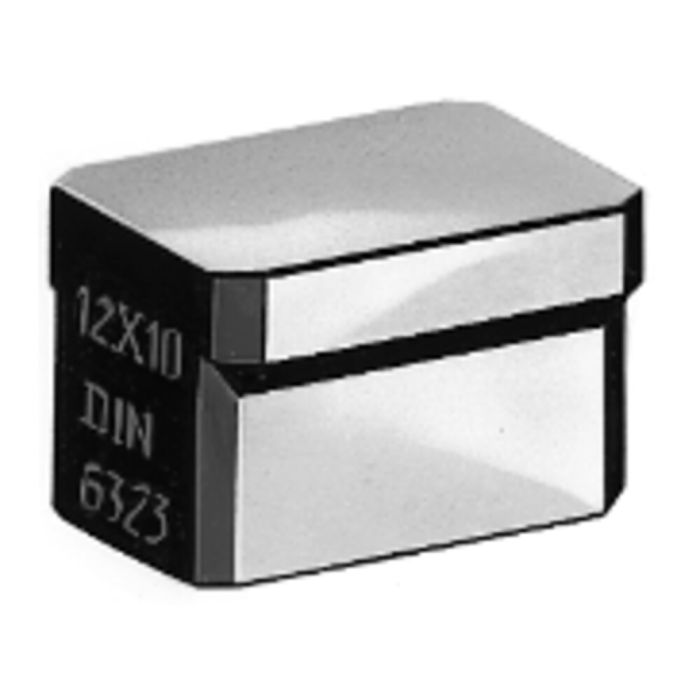

Loose type tenons Nominal width of fixture/machine 12 mm/10 mm, form A
Order no. Nominal width of Nominal width of Form H1 H2 H3 H4 L Weight Availability Your Price 71811 12 10 A 12 3,6 - - 20 20
71829 12 12 B 28,6 - 5,5 9 20 45
71837 20 12 A 14 5,5 - - 32 50
71845 20 14 A 14 5,5 - - 32 55
71852 20 16 A 14 5,5 - - 32 60
71860 20 18 A 14 5,5 - - 32 65
71878 20 20 B 45,5 - 7 16 32 200
71886 20 22 C 50,5 - 7 18 40 290
71894 20 24 C 55,5 - 7 20 40 350
71902 20 28 C 61,5 - 7 24 40 460
71910 20 36 C 76,5 - 7 30 50 940
Application:
More Information Order no. 71811 Product type Type tenons Slot [mm] 10
