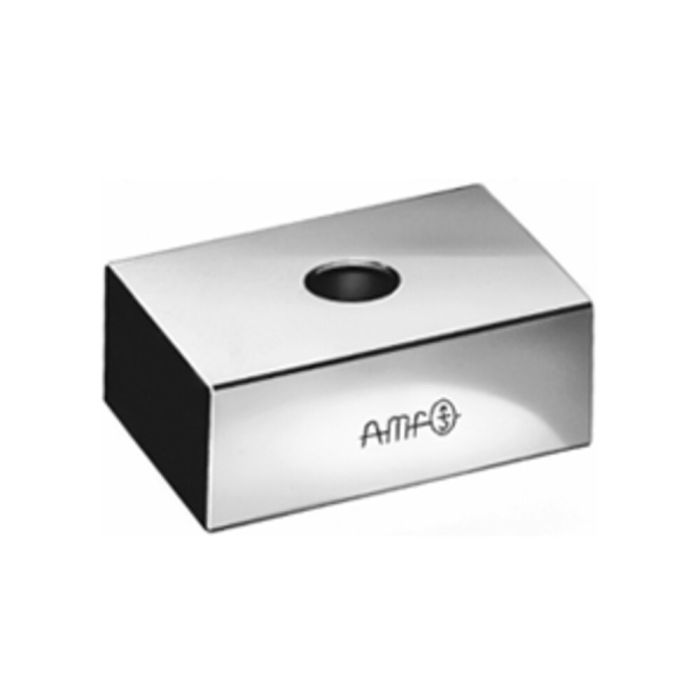

Low type tenons
Dimensions 20x10x8 mm, screw DIN84 M4x10
Order no.
71696
Application:
Low-type tenons are useful and inexpensive to use, when a fixture is always used on the same machine. For very heavy fixtures we recomend the use of loose type tenons DIN 6323.
| Order no. | 71696 |
|---|---|
| Produkttyp | Type tenons |
| Nut [mm] | 10 |
| Länge [mm] | 20 |
| Breite [mm] | 10 |
| Höhe [mm] | 8 |
| Weight [g] | 11 |
